Mercedes A6298326529 - HEIZROHR

S 417 HDH MODELLPFLEGE 629.627

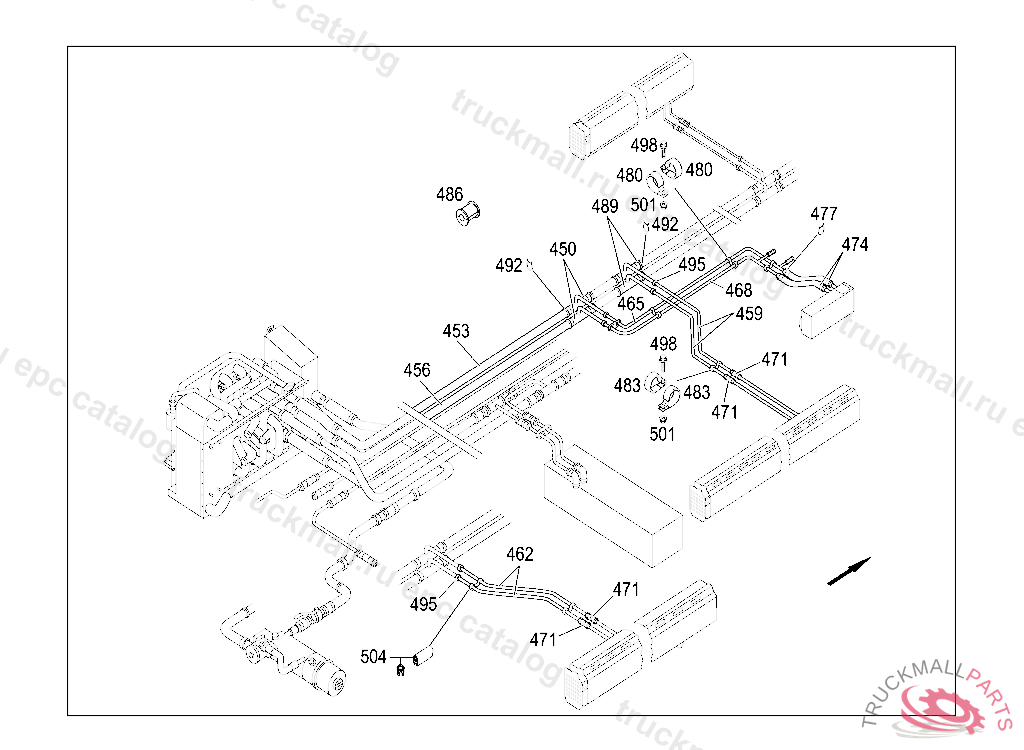

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 5

Поз.
Артикул
Описание
450
A6298326529
PIPE LINE180MM
453
A6298326329
PIPE LINE ADVANCE
456
A6298309416
PIPE LINE RETURN
459
A6298321264
PIPE LINE1040MM
462
A6298320165
PIPE LINE
465
A6298320864
PIPE LINE ADVANCE
465
A6298300563
PIPE LINE ADVANCE
468
A6298300663
PIPE LINE RETURN
468
A6298329964
PIPE LINE RETURN
471
N000000004968
HOSE18X27X100MM
474
N000000004958
HOSE12X21MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
474
N000000004966
HOSE271-15X24X2000, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
474
N000000004963
HOSE15X24X150MM
477
N000000000665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
480
N916016015202
CLAMP LINE MOUNTING
483
N916016018201
CLAMP BRAKE HOSE BRACKET
486
A6328330417
BUSHING
489
A0009970359
CONNECTION FITTING
492
N000000002772
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
495
N000000000666
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
498
N910105006006
SCREW BRACKET AND CLAMP M6X20
501
N910112006001
NUT , Replaced By: N913023006001
504
A0008210088
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
