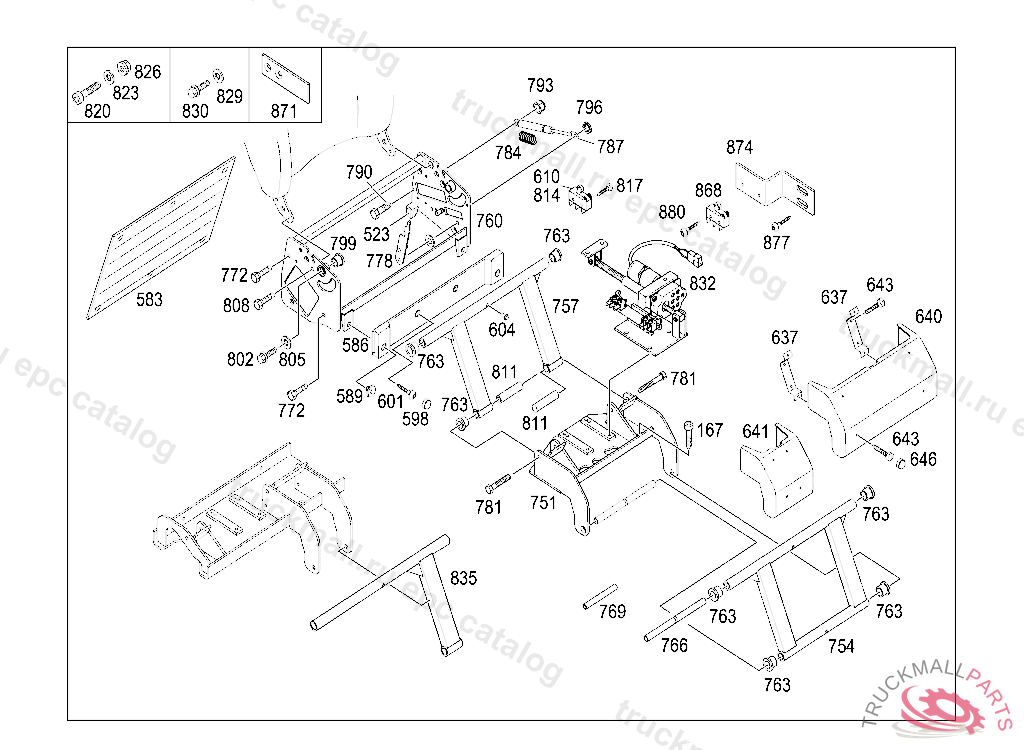

Поз.
Артикул
Описание
167
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
523
HANDLE
583
COVERING
583
COVERING
586
COVERING
589
GUIDE ON SIDE OF AISLE AND ON SIDE OF WALL
598
LOCKING CAP
601
TAPPING SCREW BRACKET MOUNTING
604
FASTENER BUTTON
610
SWITCH
637
BRACKET
640
COVERING
641
COVERING
643
SHEET METAL SCREW. SCREWST25X 6 T20
643
TAPPING SCREW BRACKET MOUNTING
646
LOCKING CAP
751
SEAT CUSHION FRAME
754
FRAME PART FRONT
757
FRAME PART REAR
757
FRAME PART
760
BACKREST FRAME
763
BUSHING
766
TUBE
769
TUBE
769
TUBE
772
HEXAGON HEAD BOLTM8X30
778
LEVER LEFT
778
SINGLE LEVER LEFT
781
SCREWM8X70
784
TENSION SPRING
787
GAS SPRING
790
SCREW BRACKET AND CLAMP M6X20
793
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
796
LOCK RING SLIDE TO RETAINING RAIL
799
BUSH WITHOUT CHAMFER
802
HEXAGON HEAD BOLT. SCREW STAY TO APPARATUS SUPPORT
802
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
802
HEXAGON HEAD BOLTM8X30
805
WASHER PUMP TO CONSOLE
808
SCREW BRACKET TO CROSS CONNECTION STRUT
811
TUBE
814
SWITCH
817
TAPPING SCREW RAIL
820
SCREWM 8X12
823
WASHER8,1X16X2MM
826
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
829
WASHER COMPRESSED AIR LINE TO BRACKET
830
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
832
ELECTRIC MOTOR
835
FRAME PART FRONT
868
SWITCH
871
BRACKET
874
ANGLE
877
TAPPING SCREW MOUNTING PLATE 3.5X9.5
880
TAPPING SCREW. SCREW2,9X19MM
880
TAPPING SCREW2,9X9,5
999
GRUB SCREW
999
BUSHING
