Mercedes
›
BUS
›
O 100 CITY
›
631.399
›
13 AIR COMPRESSOR
›
001 AIR COMPRESSOR

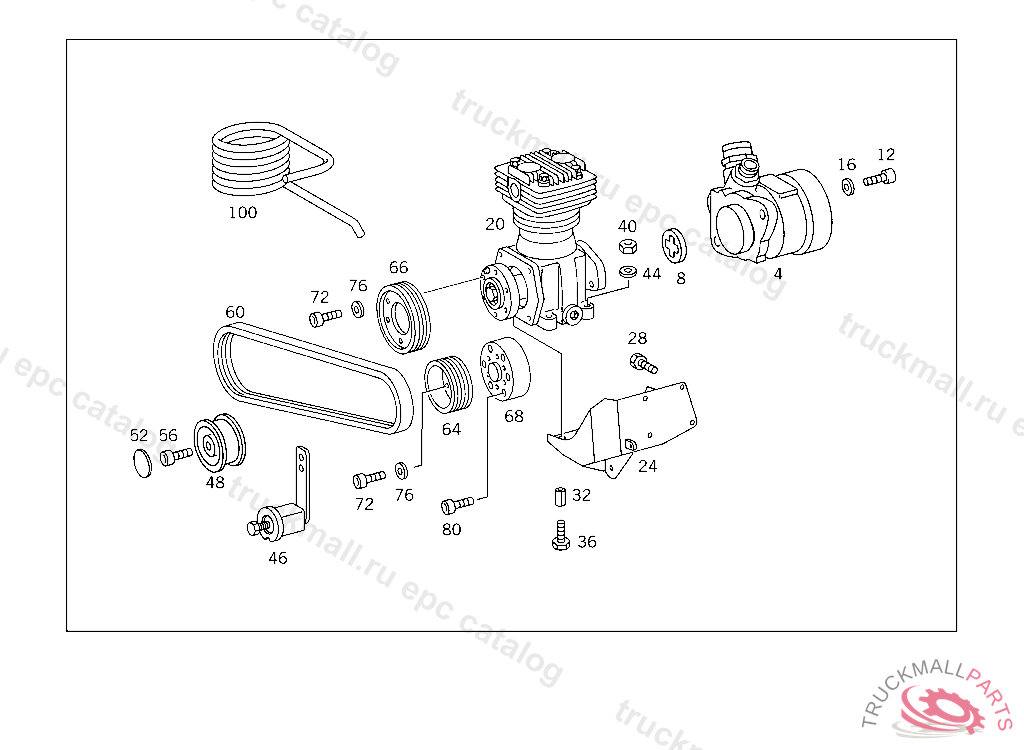

Mercedes QDUV130031 -
O 100 CITY 631.399
13 AIR COMPRESSOR - 001 AIR COMPRESSOR
Поз.
Артикул
Описание
4
Q2106404
4
Q7672955166
8
Q7646040131
8
A0001320710
FOLLOWER POWER STEERING PUMP AT ENGINE
12
N000912010065
SCREW BRACKET TO CONSOLE
16
N000125010517
WASHER GROUND CABLE
20
A6021300515
20
Q4111400010
24
QDUV130029
28
N000933008108
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
32
A6019920425
SLEEVE
36
N000931008276
40
N000934008008
NUT BATTERY CASE
44
N000125008417
WASHER TRAILER PLUG SOCKET TO BRACKET
46
A0002000870
46
QDUV130031
48
A6012000970
BELT TIGHTENER PULLEY. BELT TIGHTENER REFRIGERANT COMPRESSOR
52
A6012020522
COVER TIGHTENER PULLEY SA 22400
56
N000912008063
SCREW GRIP RAIL MOUNTING M 8 X 35
60
Q6PK869
64
QDUV130020
66
QDUV130021
68
QDUV130022
72
N000912008009
SCREW , Replaced By: N000912008200
76
N000125008417
WASHER TRAILER PLUG SOCKET TO BRACKET
80
N000912008063
SCREW GRIP RAIL MOUNTING M 8 X 35
100
QDUV130028
PART NAME MISSING COMPRESSED AIR LINE
999
QDUV130032
999
QDUV130033
999
QDUV130034
999
QDUV130035
999
QDUV130036
