Mercedes A0008212914 - HALTER T-FUEHLER F.S

TRAVEGO 16 RHD 3 - ACHSER 632.005

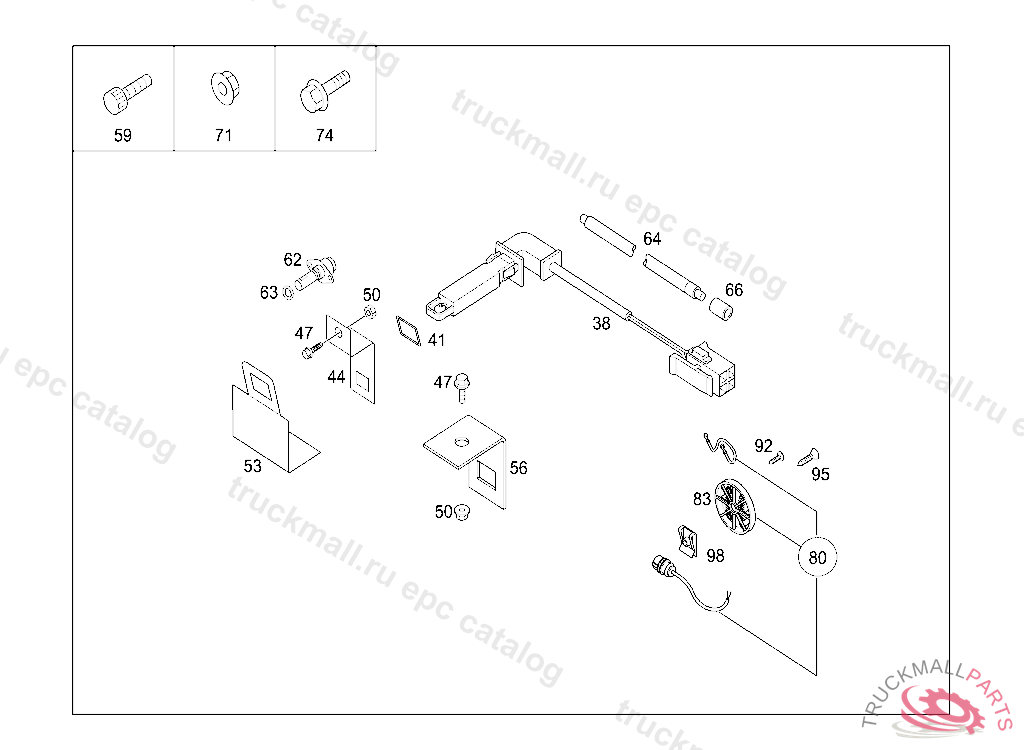

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 455 PRESSURE SWITCH, TRANSMITTER AND SENSORS IL. 2

Поз.
Артикул
Описание
38
A0078200810
TEMPERATURE SENSOR
41
A0269977048
SEAL RING
44
A0008213014
BRACKET
47
N910105006002
HEXAGON HEAD BOLT
47
N000000002925
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
50
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
50
N910112006001
NUT , Replaced By: N913023006001
53
A0008212914
BRACKET GLUED VERSION
56
A6326950614
BRACKET SCREWED
59
A0005450171
SCREW
62
A0071531128
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
63
A1029970045
SEAL RING12X2
64
A0005463901
ELECTRICAL CABLE. ELECTRIC CABLE1X50MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
66
A0009970581
GROMMET5.0 MM
71
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
71
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
71
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
74
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
80
A4445400145
SWITCH ENGINE COMPARTMENT FIRE DETECTION
83
A0135422517
THERMAL CONTACT. SENDER UNIT FIRE-ALARM SYSTEM
92
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
95
A0039908412
HEX. SKT. CAP BOLTM5X16MM
98
A0019907291
CLIP FASTENERM5
