Mercedes A0008600125 - ZB DRUCKMITTELBEHAEL

TRAVEGO 16 RHD 3 - ACHSER 632.005

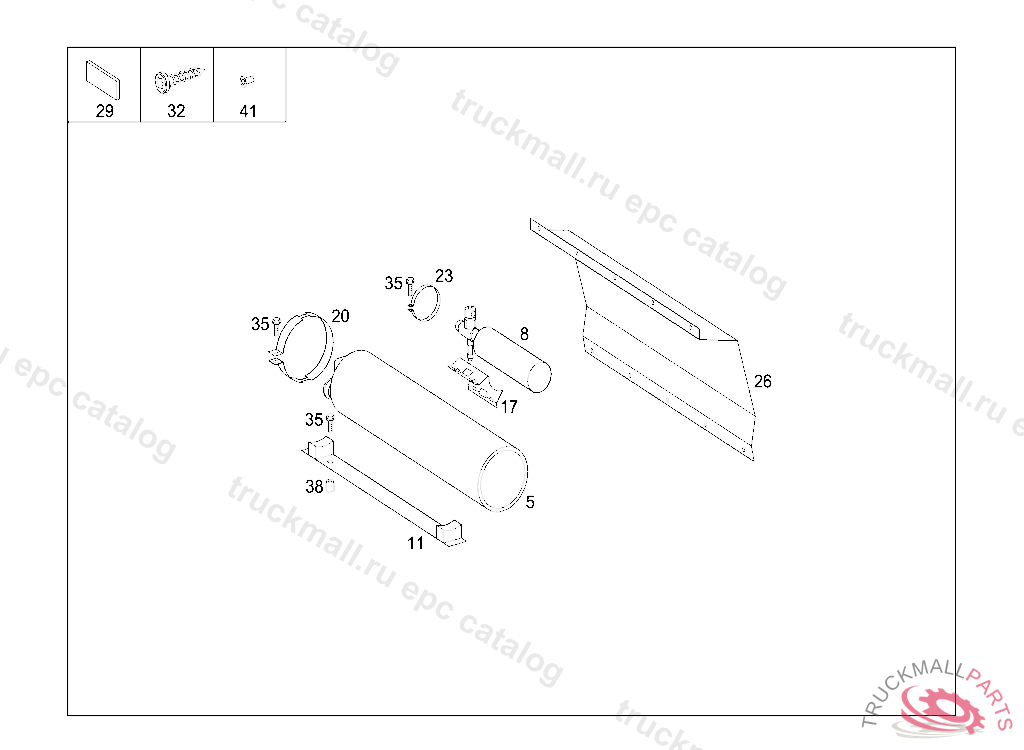

86 EMERGENCY EQUIPMENT - 120 FIRE EXTINGUISHER SYSTEM IL. 1

Поз.
Артикул
Описание
5
A6288601360
RESERVOIR EXTINGUISHING AGENT 6.5 L
5
A6288601860
WATER CONTAINER EXTINGUISHING AGENT 6,5 L
8
A0008600325
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
8
A0008600125
PRESSURE TANK EXTINGUISHING AGENT
11
A0008633414
BRACKET
17
A6298680031
CONSOLE
20
A0008630471
STRAP
23
A0059972990
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
26
A6328650053
EXG. AGENT TANK COVER
29
A0006820104
INSULATION1000X1000MM, ABMESSUNG ANGEBEN
32
N000000000528
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
35
N910143008005
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
38
A0019920150
DISTANCE SLEEVE
41
N913024008100
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
