Mercedes A0039975352 - LUFTSCHLAUCH

TRAVEGO 16 RHD 3 - ACHSER 632.005

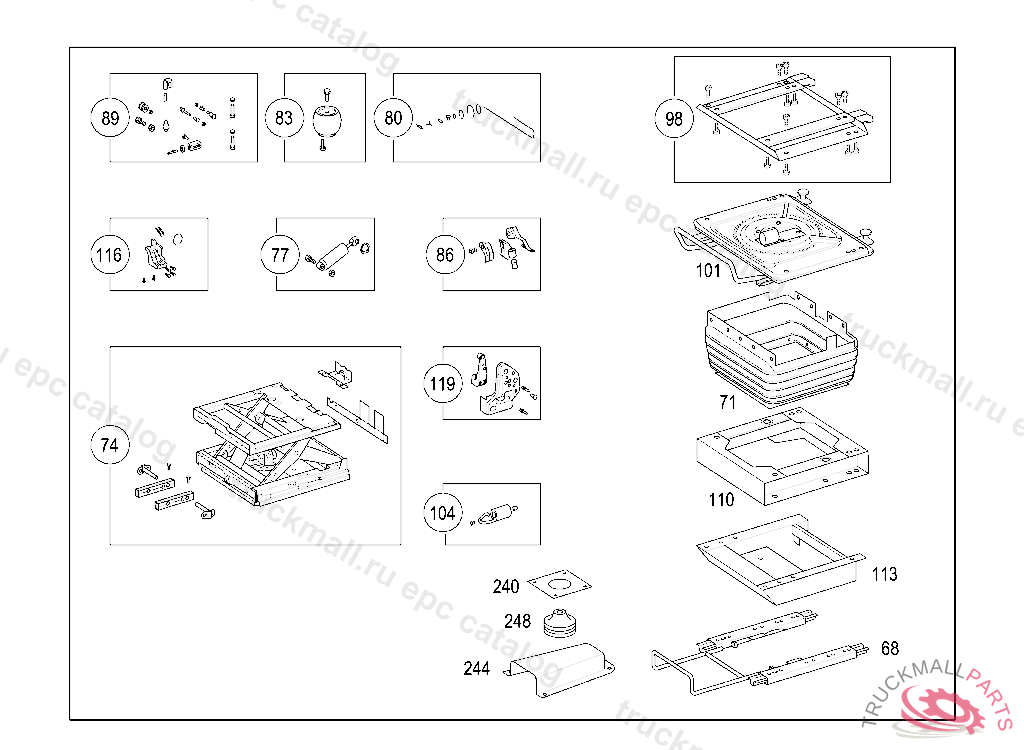

91 FRONT SEATS - 035 GRAMMER DRIVER'S SEAT IL. 2

Поз.
Артикул
Описание
68
A0009104290
RUN FORE-AND-AFT ADJUSTMENT
71
A0009110194
BELLOWS SWITCH FOR SEAT ADJUSTMENT,LEFT
71
A0009111594
BELLOWS
74
A0009140837
SEAT SUSPENSION ELEMENT
74
A0019141501
SPRING CORE
74
A0009100643
SWINGING FRAMEWORK
74
A0019141401
SWINGING FRAMEWORK
74
A0009100453
SWINGING FRAMEWORK
74
A0009100353
SWINGING FRAMEWORK
74
A0009140737
SEAT SUSPENSION ELEMENT
77
A0029804664
SHOCK ABSORBER VERTICAL,ADJUSTABLE
77
A0019190945
SHOCK ABSORBER VERTICAL,ADJUSTABLE
80
A0005501259
HOSE ASSEMBLY
80
A0005501459
HOSE ASSEMBLY
80
A0039975352
HOSE REPAIR KIT
80
A0039976452
HOSE
83
A0008001136
SPRING AIR SPRING
86
A0009108736
HEIGHT ADJUSTMENT. SEAT ADJUSTER SELF-LEVELLING DEVICE
89
A0009100699
REPAIR KIT (WEARING PARTS KIT)
98
A0009101357
CONSOLE
101
A0009101457
ROTATING ADAPTER ROTATING DEVICE
104
A0008004572
CYLINDER PNEUMATIC CYLINDER
110
A6289110431
CONSOLE
110
A6289110331
CONSOLE FOR DRIVER SEAT,ROTATING
113
A6279110431
CONSOLE
113
A6279110031
CONSOLE
116
A0009108838
VALVE
116
A0009109438
VALVE
119
A0009903099
REPAIR KIT. ATTACHMENT REPAIR KIT: ADJUSTMENT OF SEAT SQUAB INCLINATION
240
A6286160008
PLATE
244
A6289110008
COVERING FOR SEATS WITH INCREASED AND OFFSET SEAT CONSOLE 90MM
248
A1869970781
GROMMET 34 MM
999
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
999
N000000000515
TAPPING SCREW RAIL
