Mercedes A0029908022 - Болт

TRAVEGO 16 RHD 3 - ACHSER 632.005

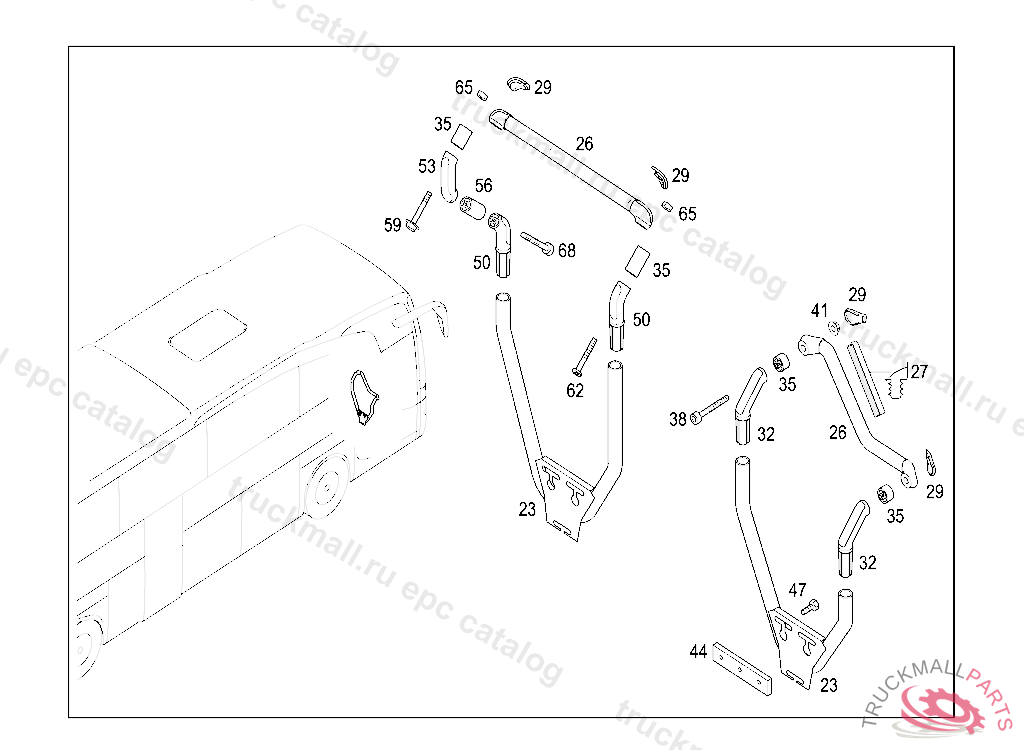

81 APPOINTMENTS - 250 GRAB HANDLE IL. 2

Поз.
Артикул
Описание
23
A6298101132
CLAMP , TO BE ADAPTED DURING ASSEMBLY
26
A6329100071
HANDLE
27
A6329110097
INSERTTO A 632 810 03 54, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
29
A6329190120
COVERING
32
A6277104832
CONNECTIONGR90
35
A6277117234
CONNECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
38
N000912008112
CAP BOLTM8X45
41
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
44
A6329110011
PLATE
47
N910105010006
SCREWM 10X20
50
A6277103732
CONNECTIONGR45
53
A6277100432
CONNECTIONGR90
56
A0009972876
CONNECTION
59
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
62
N000000001432
HEXALOBULAR BOLT ABSORBER AT BOTTOM TO INTEGRAL CARRIER AT LEFT AND RIGHT
65
N304032008006
NUT
68
A0029908022
BOLT. SCREWM8X30MM
