Mercedes A6326802607 - ZB ABDECKUNG

TRAVEGO 15 RHD 2 - ACHSER 632.006

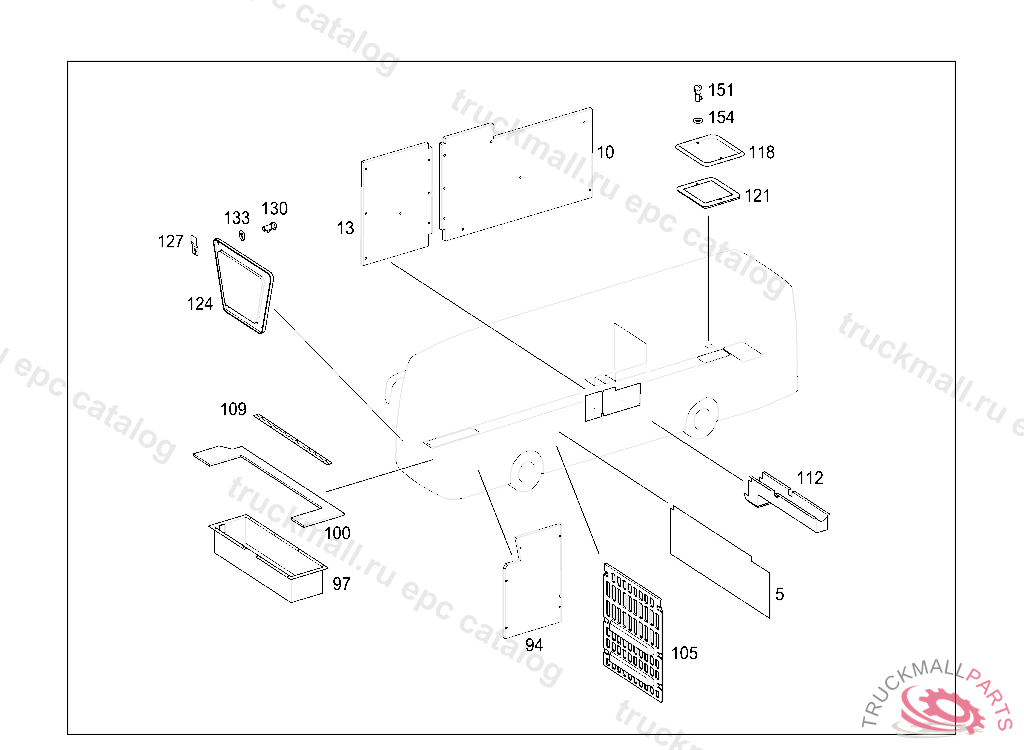

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6326820516
COVER , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 07.06.2006
5
A6326870107
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
10
A6326844018
COVER LUGGAGE COMPARTMENT, TO BE ADAPTED DURING ASSEMBLY
10
A6326843918
COVER LUGGAGE COMPARTMENT, TO BE ADAPTED DURING ASSEMBLY
10
A6326843718
COVER LUGGAGE COMPARTMENT, TO BE ADAPTED DURING ASSEMBLY
10
A6326844118
COVER LUGGAGE COMPARTMENT, TO BE ADAPTED DURING ASSEMBLY
13
A6326843618
COVER LUGGAGE COMPARTMENT, TO BE ADAPTED DURING ASSEMBLY
94
A6326820016
COVERING ELECTRICAL COMPARTMENT
97
A6326800258
SHEET-METAL PAN
100
A6326841464
FLOOR FLAP
105
A6296860407
COVERING CROSS MEMBER 4
109
A0006840052
HINGE PLATE
112
A6326840677
COVER WATER PIPES
118
A0006840018
COVER ABS
121
A6326802607
COVER PROTECTIVE PLATE
121
A0006800907
COVERING
124
A6296860010
PANELLING PANE WIPER
127
A0019886142
FASTENER
130
A0009915807
PIVOT PIN
133
A0009911195
FASTENING CLIP
151
A0006830212
FASTENER SUPERFIX
154
N000125008445
WASHER PUMP TO CONSOLE
