Mercedes A0009904892 - Крепёж

TRAVEGO 15 RHD 2 - ACHSER 632.006

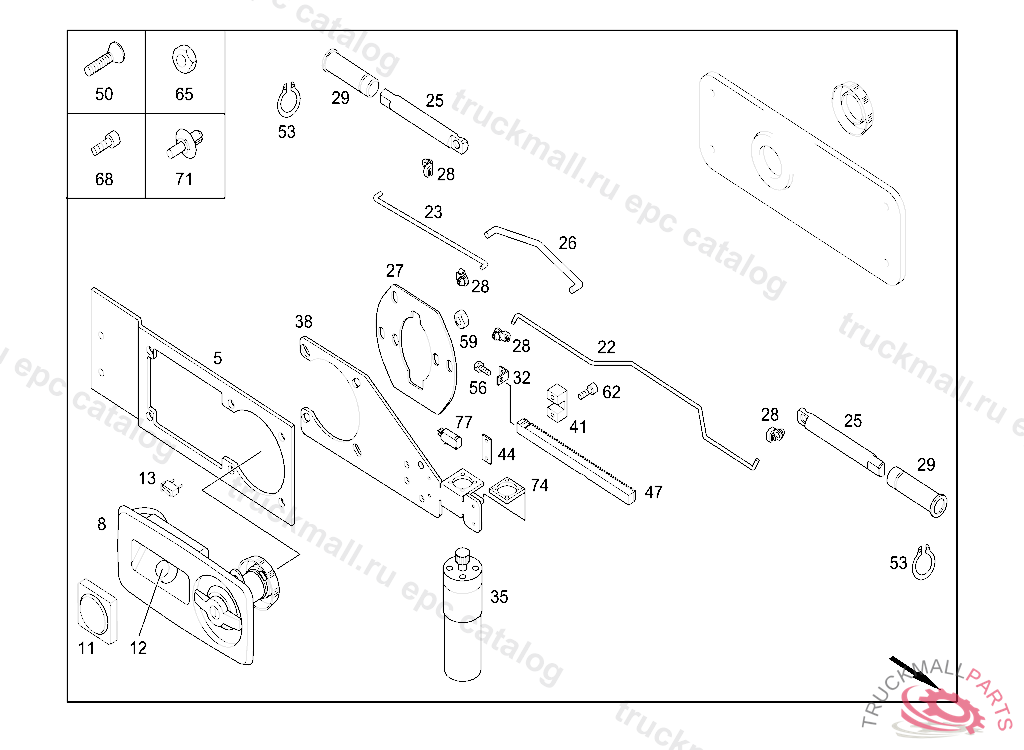

72 DOORS - 180 CLOSING SYSTEM IL. 1

Поз.
Артикул
Описание
5
A6327630097
PAD
8
A6327200166
LOCK , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.01.2012
8
A6297600160
HANDLE
11
A0007660068
ORNAMENTAL COVER MICRO-SWITCH
12
A0008212492
MICRO-SWITCHTYP83123
13
A0008212592
MICRO-SWITCH
22
A6327230469
PULL ROD RIGHT 382MM
23
A6327330969
PULL ROD LEFT 208.2MM, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.05.2008
23
A6327330169
PULL ROD
23
A6327331069
OPERATING ROD LEFT 225.1MM: TO A 632 720 01 66
23
A6327230569
PULL ROD LEFT 206MM
23
A6327330569
PULL ROD
25
A6327230369
LOCK STRIKER
26
A6327231469
PULL ROD TOP
26
A6327230669
PULL ROD TOP 93MM
27
A6327660019
PLATE
28
A0009916771
RETAINING CLIP
29
A6327330064
LATCH GUIDE
32
A6327630012
ANGLE18X15,8X10MM
35
A6327600708
LOCKING MECHANISM TOTAL RANGE OF DELIVERY 12V
38
A6327630031
CONSOLE
41
A6327660066
GUIDE
44
A6327660166
GUIDE
47
A6329190027
LINK
50
N000000002926
SCREWM3X16MM
53
N000471016000
RETAINING RING. LOCK RING BRACKET TO BRACKET
53
N000471005000
LOCK RING
56
N910105005000
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
59
A0009902562
NUT
59
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
59
N910112006001
NUT , Replaced By: N913023006001
62
A0039907912
SCREW, SPECIAL SHAPE. SCREWM4 X 16
65
N304032003001
NUT BRACKET MOUNTING
68
A0049907812
SCREW
71
A0009904892
RIVET
71
A0009914940
EXPANSION RIVET BRACKET MOUNTING
74
A6327660119
PLATE
77
A6327630010
SWITCH
77
A0038212351
SWITCHTO A 000 760 90 03
