Mercedes
›
BUS
›
TRAVEGO 15 RHD 2 - ACHSER
›
632.006
›
69 COVERING AND LINING
›
030 INTERIOR PANELLING IL. 2

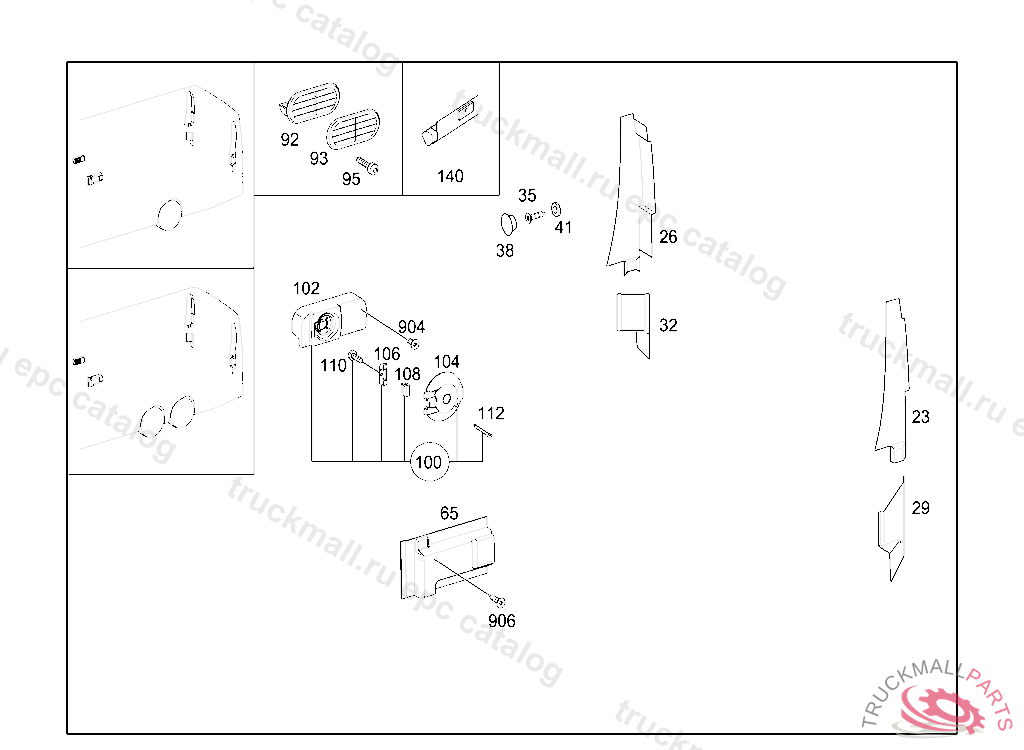

Mercedes A6296901340 - LU VERKLEIDUNG NOTHA
TRAVEGO 15 RHD 2 - ACHSER 632.006
69 COVERING AND LINING - 030 INTERIOR PANELLING IL. 2
Поз.
Артикул
Описание
23
A6326901541
PANELLING REAR END,TOP LEFT
26
A6326941125
PANELLING REAR END,TOP RIGHT
29
A6326941225
PANELLING REAR END,BOTTOM LEFT
32
A6326941325
PANELLING REAR END,BOTTOM RIGHT
35
A0019904936
SHEET METAL SCREW3.5X22 T20
38
A0009877045
LOCKING CAP
41
N000000003738
WASHER4MM
65
A6296920022
COVERING
92
A6326900207
COVERING
93
A6326920522
COVERING
95
N000000002027
TAPPING SCREW2,9X9,5
100
A6296901340
PANELLING , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
102
A6296926601
PANELLING
104
A3566910027
COVER
106
A3016910335
SPRING
108
A3016910021
MOUNTING
110
N000000000447
TAPPING SCREW BRACKET MOUNTING
112
N000094002064
COTTER PIN ROD TO INTERMEDIATE LEVER
140
A6326901500
COVER STATE SIZE WHEN ORDERING
904
A0029900020
ECCENTRIC SCREW ROLLER BLIND TO BODY M6X16 T30
906
N000000000478
TAPPING SCREW3.5X19
