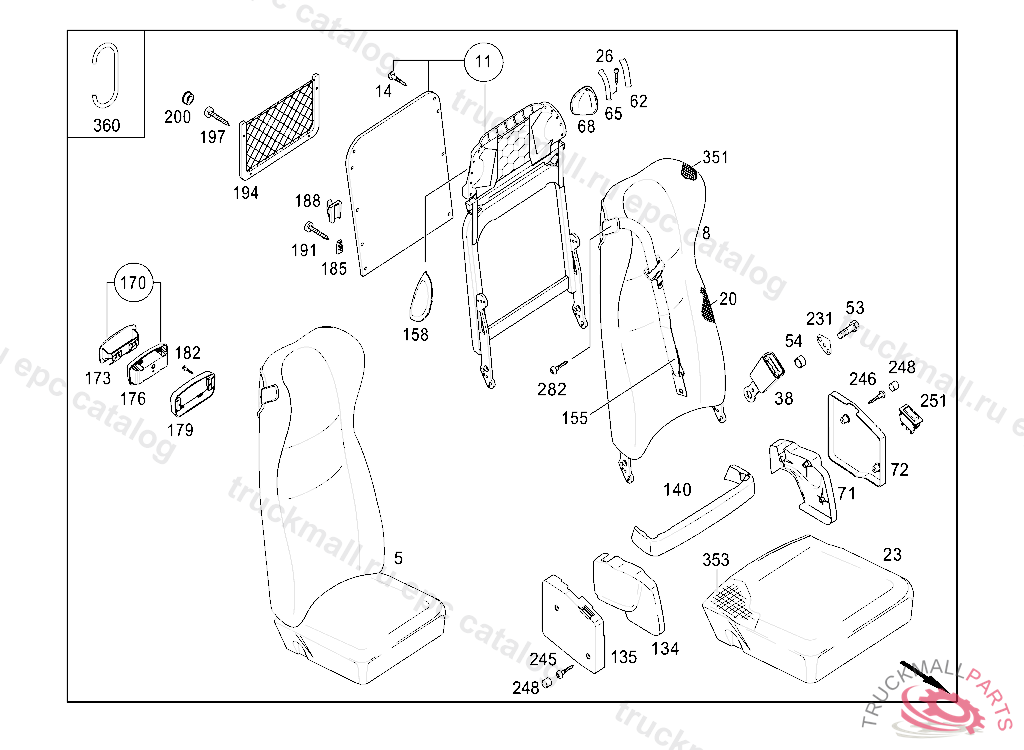

Поз.
Артикул
Описание
5
FRONT SEAT CO-PILOT SEAT,WALL SIDE
5
FRONT SEAT CO-PILOT SEAT,POWER
5
FRONT SEAT CO-PILOT SEAT,GEAR SIDE
8
BACKREST
11
BACKREST FRAME
14
SCREW
20
PAD
23
SEAT ADAPTER
26
SCREW ASHTRAY MOUNTING
38
FASTENER
53
SCREWM 10 X 14
53
SCREWM10X32MM
54
BUSHING BELT LOCK MOUNTING
62
CAP LEFT,EVO GRAY
65
HANDLE LEFT
68
SHELL TYPE HANDLE LEFT
71
COVERING LEFT
72
COVERING LEFT
134
COVERING RIGHT
134
COVERING RIGHT
135
ORNAMENTAL COVER
140
COVERING
140
COVERING
155
SIDE MEMBER
158
COVERING RIGHT
170
ASHTRAY
173
COVER
176
HOUSING
179
FRAME
182
TAPPING SCREW4.2X19
185
BRACKET
188
CLOTHES-HOOK
191
TAPPING SCREW3,5X16MM
194
LUGGAGE NET
197
TAPPING SCREW4.2X19
200
CAP
231
PLATE
245
SHEET METAL SCREW. SCREWST25X 6 T20
246
SCREW4.2X32
248
LOCKING CAP
251
SWITCH
282
SCREW W SOCKET DRIVEM6X25 T30
351
COVER BACKSEAT, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
351
BACKREST COVER FOR CLIMATE-CONTROLLED SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
351
COVER SEAT CUSHION, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
353
CUSHION COVER SEAT FOR CLIMATE-CONTROLLED SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
360
CLIP
999
SCREW
999
FASTENER BUTTON
999
ELECTRIC CABLE
999
BUSHING ATTACHMENT,SEAT BELT TONGUE
999
TAPPING SCREW LIGHT SWITCH 4.8X32
999
TAPPING SCREW2,9X9,5
999
TAPPING SCREW. SCREW2,9X19MM
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW BRACKET TO CAB REAR PANEL M 8X20
999
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
999
NUT BRACKET TO FIRE WALL
