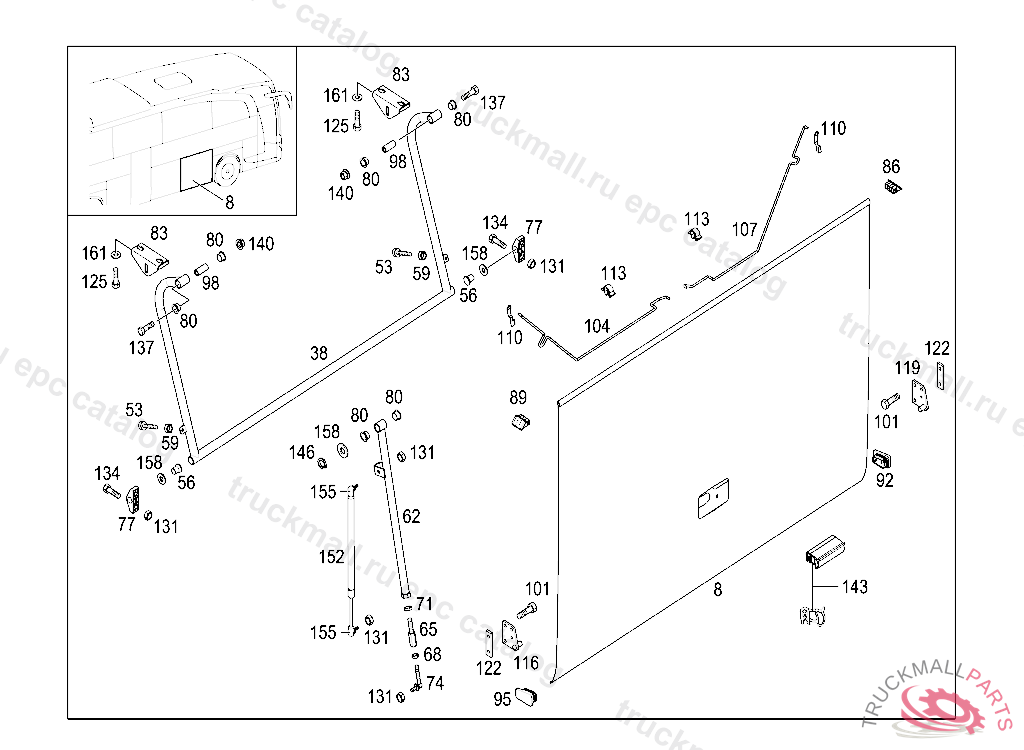

TRAVEGO 17 RHD 3 - ACHSER
632.007
62 COWL,FRONT PANEL
030 COWL IL. 1

Mercedes A0029872640 - ANSCHLAGPUFFER

TRAVEGO 17 RHD 3 - ACHSER 632.007

62 COWL,FRONT PANEL - 030 COWL IL. 1

Поз.
Артикул
Описание
53
A0029872640
RUBBER BUFFER
56
A6297540015
PIN
59
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
62
A6297508356
ARM
62
A6297501156
ARM , Replaced By: A6297508356
65
A0029908222
SCREW
68
N304035010001
NUT
71
N000000001082
HEXAGON NUTM 12 X 1.5 LH
74
A6297500088
ARTICULATION PIECE
77
A6297540214
BRACKET
80
A6297550047
SLEEVE
83
A6297540314
BRACKET
86
A0009879045
LOCKING CAP
89
A0009878945
LOCKING CAP
92
A0009877745
LOCKING CAP
95
A0009877645
LOCKING CAP
98
A6297550247
SLEEVE
101
N910105008041
SCREW , Replaced By: N910143008000
104
A6297543419
STRUTL710 MM
104
A6297542919
STRUTL753 MM
104
A6297543319
STRUTL645 MM
104
A6297549319
OPERATING RODL977MM
107
A6297544119
STRUTL725 MM
107
A6297544219
STRUTL781 MM
107
A6297543719
STRUTL824 MM
107
A6297549419
OPERATING RODL1068 MM
110
A0007580042
LOCK
113
A0009956844
CLAMP ELECTRIC CABLE TO DOOR INTERIOR PLATE
116
A0007580203
STRIKER
119
A0007580303
STRIKER
122
A6297550111
PLATE
125
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
131
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
134
N910105008039
SCREW , Replaced By: N910143008002
137
N910105010012
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
140
N910104010001
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
143
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
146
N000471018001
LOCK RING , 385.068,069 ON VEHICLES WITH DB CAB ONLY 385.019 FOR USE WITH SHORT MERCEDES-BENZ CAB
152
A6297500736
SPRING PNEUMATIC SPRING 700 N
155
A0009932060
JOINT BALL HEAD
158
N000000000949
WASHER
161
N000125008440
WASHER
