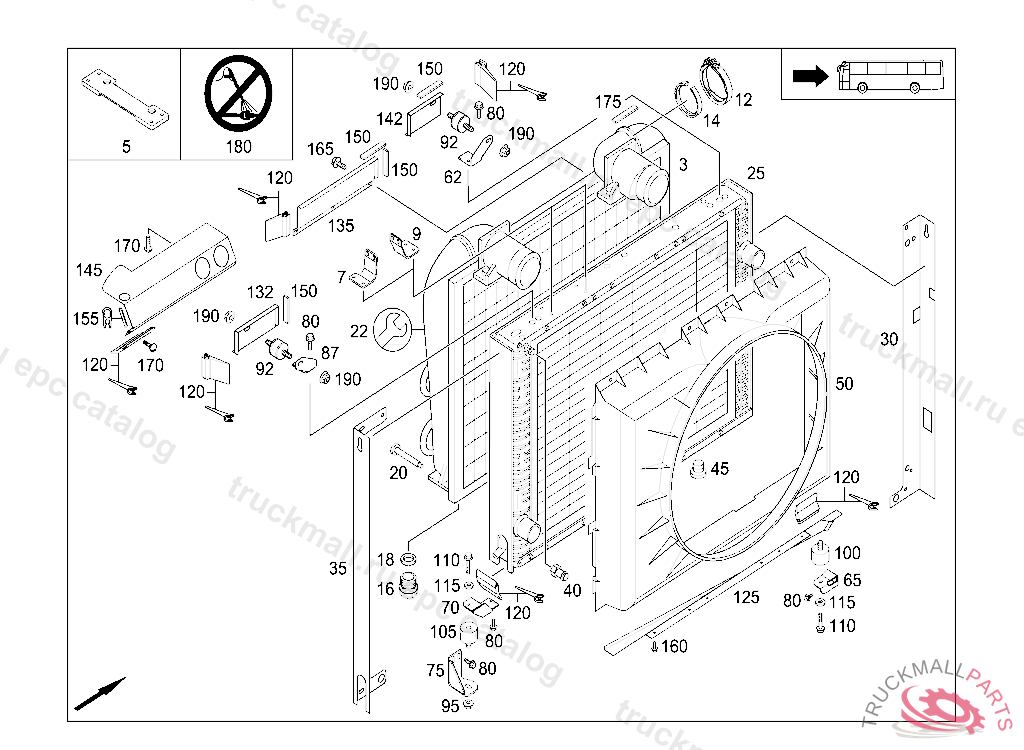

Поз.
Артикул
Описание
3
RADIATOR CHARGE AIR COOLER, AIR-COOLED, AS OF PRODUCTION BREAKPOINT DATE 03.04.06
3
RADIATOR CHARGE AIR COOLER, AIR-COOLED, UNTIL PRODUCTION BREAKPOINT DATE 02.04.06
5
BRACKET
7
BRACKET
9
BRACKET
12
HOSE CLAMP
14
SEAL RING
16
SCREW PLUG
18
SEAL RINGTO 001 431 72 14
20
FIT BOLT
22
REPAIR KIT MOUNTING PARTS
25
COOLANT RADIATOR AIR-COOLED
25
RADIATOR, AIR-COOLED AIR-COOLED, Replaced By: A0025012201
30
COVER PLATE
35
COVER PLATE
40
BREATHER PIPE , Replaced By: A0009973464
40
VENTILATION NECK
45
SCREW DRAIN PLUG
50
FAN SHROUD
50
FAN SHROUD , Replaced By: A0005052255
62
BRACKET , Replaced By: A6295042140
62
BRACKET TOP FRONT
65
CONSOLE
70
BRACKET
75
SUPPORTING PLATE
80
SCREWM 10X20
87
BRACKET TOP FRONT
87
BRACKET , Replaced By: A6295042040
92
RUBBER BUFFER RADIATOR MOUNTING,TOP M10X50X30
95
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
95
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
100
RUBBER BUFFER
105
RUBBER MOUNTM12X70X45
110
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
110
SCREW BRACKET TO LEFT SIDE MEMBER
115
WASHER BATTERY CASE TO SIDE MEMBER
120
RUBBER PROFILE BLACK, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
125
RADIATOR SHUTTER BOTTOM
132
RADIATOR SHUTTER TOP
135
RADIATOR SHUTTER TOP CENTER
135
RADIATOR SHUTTER TOP CENTER
142
RADIATOR SHUTTER TOP,REAR
145
RADIATOR SHUTTER TOP
145
RADIATOR SHUTTER TOP SMALL,RIGHT LARGE BORES
150
MOSS TYPE RUBBER SELF-ADHESIVE ON ONE SIDE 3X22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
155
EDGE GUARD SECTION , ORDER BY THE METER
160
HEXAGON HEAD BOLT
165
HEXAGON HEAD BOLT
170
SCREWM 8X22, T40
175
RUBBER SEAL10X15MM
180
PLATE HIGH PRESSURE CLEANER
190
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
