Mercedes A6324702664 - ZB KUNSTSTOFFLEITUNG

TRAVEGO 17 RHD 3 - ACHSER 632.007

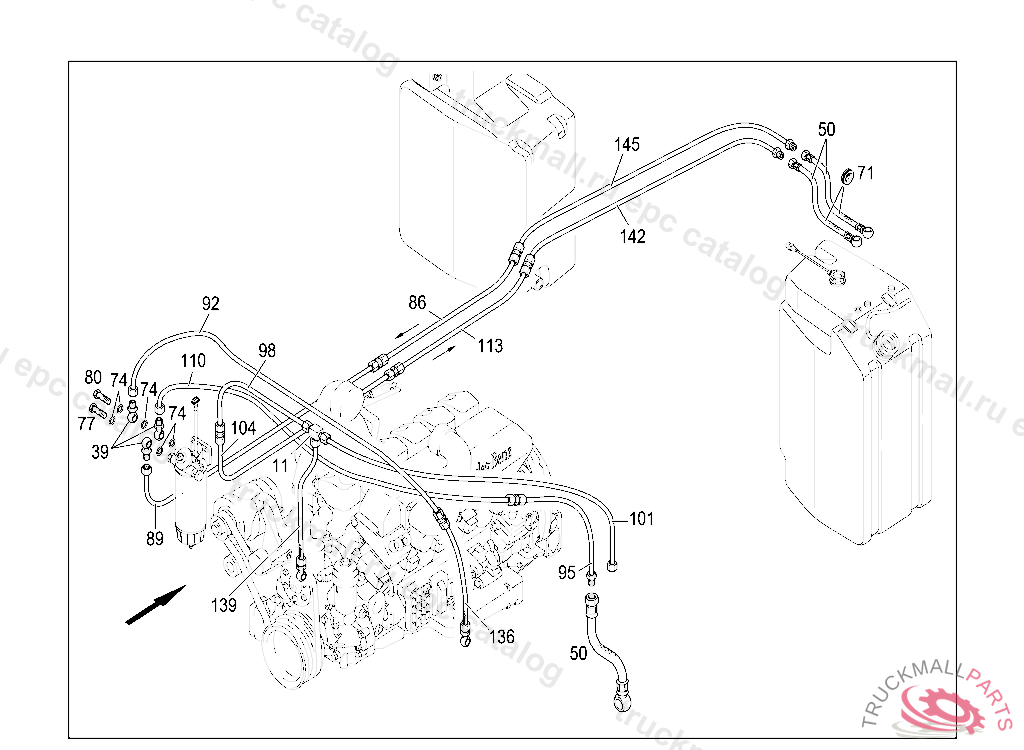

47 FUEL SYSTEM - 060 FUEL LINES AND BREATHING IL. 1

Поз.
Артикул
Описание
11
A0009979974
T-FITTING
11
A0019971974
T-FITTING18/14/18
39
N915024012000
FITTING
50
A0004761175
FUEL HOSE
71
A0009876441
GROMMET
74
N007603016105
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
77
N915036012200
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
80
N915047012200
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
86
A6324704564
LINE1776MM, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 02.06.2008
89
A6324700564
LINE
92
A6324702664
LINE1500MM
95
A6324703164
LINE1400MM
98
A6324702764
LINE1500MM
101
A6324703264
LINE1400MM
104
A6324702864
LINE1750 LG
110
A6324703064
LINE1400MM
113
A6324704264
LINE FEED 2010X12MM
136
A0004760975
FUEL HOSE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.12.2008
139
A0004761075
FUEL HOSE
142
A6324704464
LINE RETURN 760X12MM
145
A6324704164
LINE FEED 700X12MM
999
N913023008003
NUT HORN TO BRACKET M8
