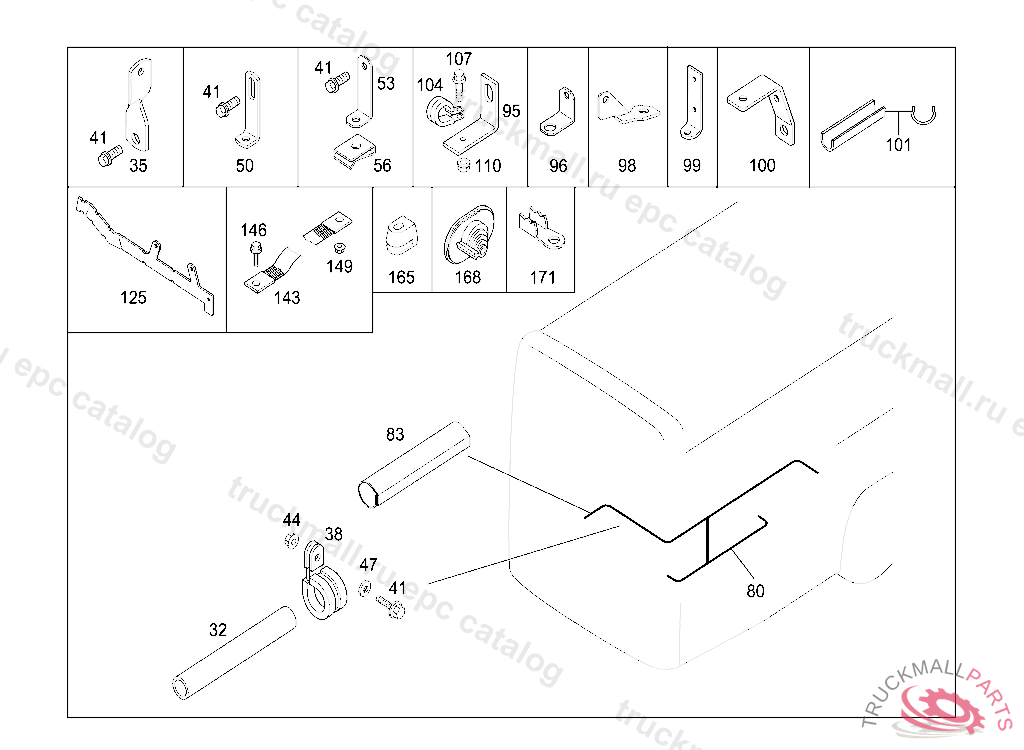

Поз.
Артикул
Описание
32
BRACKET
32
BRACKET CABLE HARNESS RETARDER, Replaced By: A0015463643
35
BRACKET BRACKET TO HEAT EXCHANGER
38
CLAMP CABLE HARNESS MOUNTING
38
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
38
CLAMP PIPE ON FAN SHROUD
38
CLAMP10/15
38
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
41
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLYM6X20
41
COMBINATION BOLT , Replaced By: N304017006016
41
HEXAGON HEAD BOLT
41
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
44
NUT , Replaced By: N304032005005
44
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
44
NUT
44
NUT
44
NUT SPRING-LOADED PUSH ROD
44
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
47
SPRING WASHER BRAKE SHOE WITH LINING
47
SPRING WASHER CABLE TO ALTERNATOR
47
WASHER LINE MOUNTING
47
SPRING WASHER CABLE TO ALTERNATOR
50
BRACKET BRACKET TO TRANSMISSION
50
BRACKET
50
BRACKET
53
BRACKET BRACKET TO TRANSMISSION
53
BRACKET BRACKET TO TRANSMISSION
56
LOCK. NUT , Replaced By: A0039941745
80
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS OM 502 LA/ EURO 4
80
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS OM457LA EURO4
80
CABLE HARNESS ENGINE CABLE HARNESS OM457LA EURO4, Replaced By: A6325405713
80
CABLE HARNESS ENGINE CABLE HARNESS OM 502 LA/ EURO 4, Replaced By: A6325405813
83
HOSE I.D., 30MM, ORDER BY THE METER
95
BRACKET
95
BRACKET
96
ATTACHMENT ANGLE BRACKET
96
BRACKET ENGINE CABLE HARNESS
98
BRACKET
98
BRACKET
99
BRACKET ALTERNATOR
100
BRACKET AT OIL PAN
101
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
104
CLAMP LINE MOUNTING 15-18 MM,V 207570
104
CLAMP LINE MOUNTING
104
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
104
CLAMP10/15
104
CLAMP22/15, Replaced By: A0019951442
104
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
107
SCREW , Replaced By: N910143008000
107
SCREW BRACKET AND CLAMP M6X20
107
SCREW , Replaced By: N910143008002
107
HEXAGON HEAD BOLT
107
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
110
NUT , Replaced By: N913023006001
110
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
125
BRACKET BELOW TRANSMISSION
143
GROUND STRAP24X3X450
146
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
149
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
165
CABLE GROMMET ALTERNATOR BRANCH-OFF
168
CABLE PASSAGE FOR CABLE HARNESS DIA.: 18MM (100X75MM)
171
CABLE SHOE8 - 50
