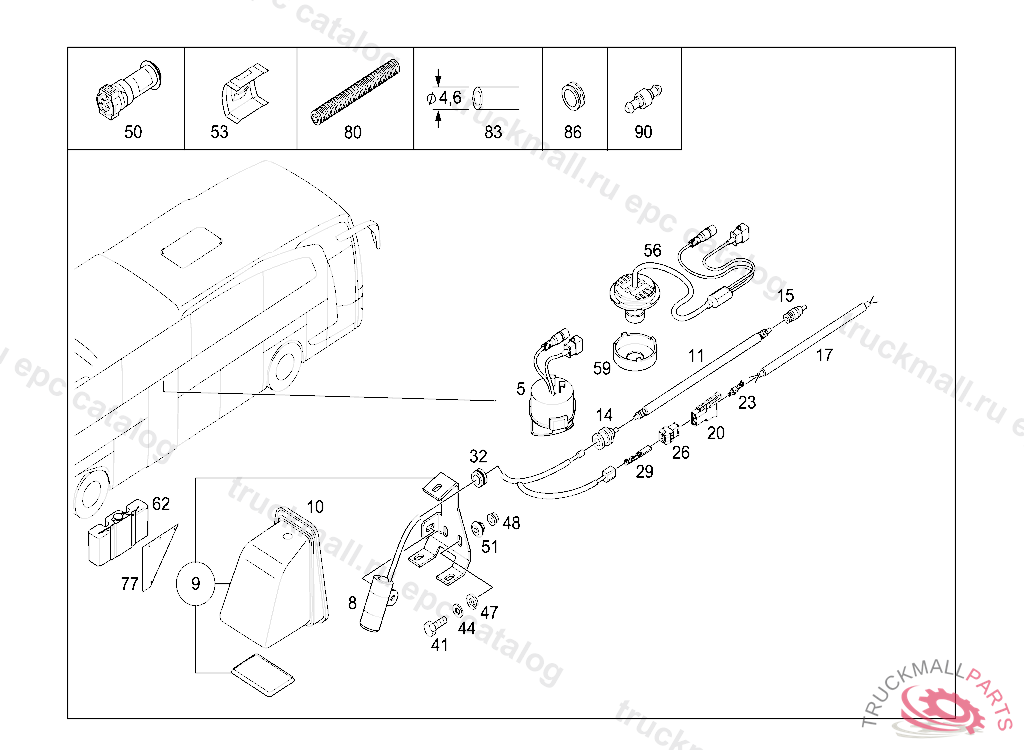

Поз.
Артикул
Описание
5
CAMERA ABOVE CENTRAL ENTRANCE
5
CAMERA BLACK/WHITE
5
CAMERA BLACK/WHITE, Replaced By: A0038201597
8
CAMERAPAL
9
SHELL REAR-VIEW CAMERA
10
GASKET
11
ANTENNA CABLE50OHM (RG-58U), ORDER BY THE METER
14
PLUGBNCR RG 58
15
PLUG
17
ELECTRIC CABLE SHIELDED 2X0.75, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
PIN BUSHING HOUSING BIPOLAR
23
CONTACT SPRING0,5 - 1,0 MM2
26
PLUG HOUSING BIPOLAR
29
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
32
GROMMET3.0 MM
41
HEXAGON HEAD BOLT
44
WASHER BRACKET TO BATTERY CASE BRACKET
47
LOCK WASHER5
48
NUT , Replaced By: N913023006001
50
BELL HOUSING BIPOLAR
51
TREENAILM 5X9.7X16.9
53
CABLE CONNECTOR
56
CAMERA ABOVE CENTRAL ENTRANCE
59
COVER
62
RESERVOIR WINDOW WASHER RESERVOIR 3 L. 3 L, Replaced By: A6298690320
62
WATER CONTAINER WINDOW WASHER RESERVOIR 3 L. 3 L
77
BRACKET WATER RESERVOIR
80
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
83
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
86
FEED-THROUGH GROMMET
90
VALVE
999
LOOM TIE LINE MOUNTING 280 MM
