Mercedes A6324703564 - Leitung

TRAVEGO 17 RHD 3 - ACHSER 632.007

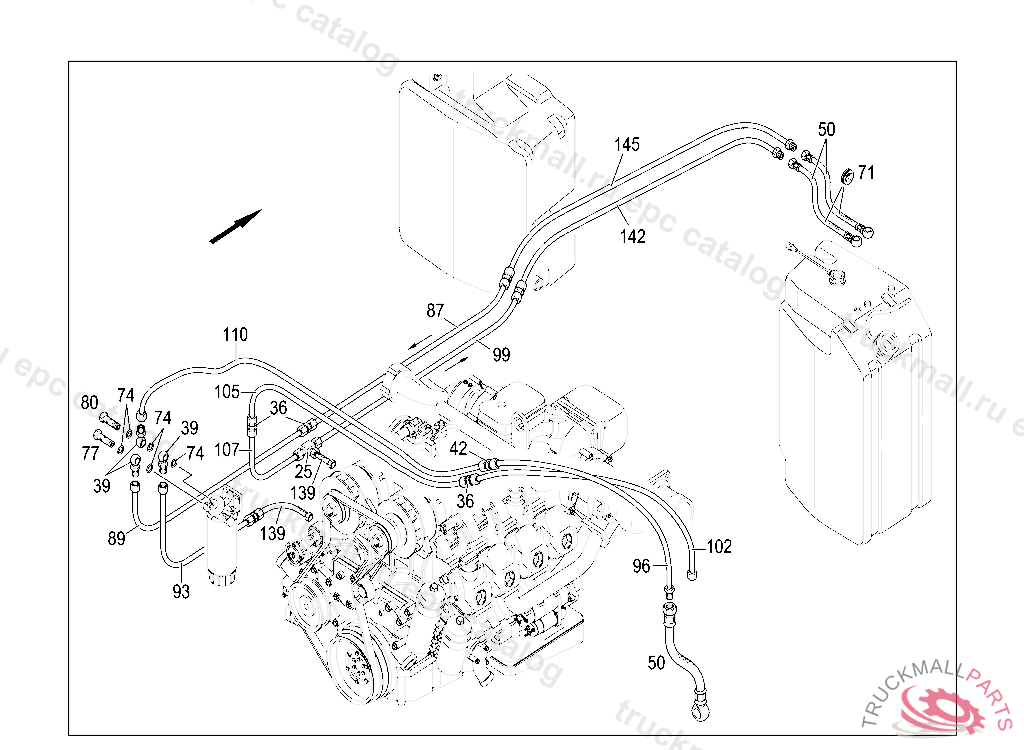

47 FUEL SYSTEM - 060 FUEL LINES AND BREATHING IL. 2

Поз.
Артикул
Описание
25
A0019971774
T-FITTING
36
N000000003116
FITTING
39
N915024012000
FITTING
42
N000000003775
FITTING
50
A0004761175
FUEL HOSE
71
A0009876441
GROMMET
74
N007603016105
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
77
N915036012200
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
80
N915047012200
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
87
A6324704264
LINE FEED 2010X12MM
89
A6324700564
LINE
93
A6324700664
LINE1530MM
96
A6324703564
LINE
99
A6324704364
LINE FEED 2010X12MM
102
A6324703164
LINE1400MM
105
A6324702764
LINE1500MM
107
A6324702864
LINE1750 LG
110
A6324703064
LINE1400MM
139
A0004761075
FUEL HOSE
142
A6324704464
LINE RETURN 760X12MM
145
A6324704164
LINE FEED 700X12MM
999
N913023008003
NUT HORN TO BRACKET M8
