Mercedes N304017008021 - АВТОЗАПЧАСТЬ

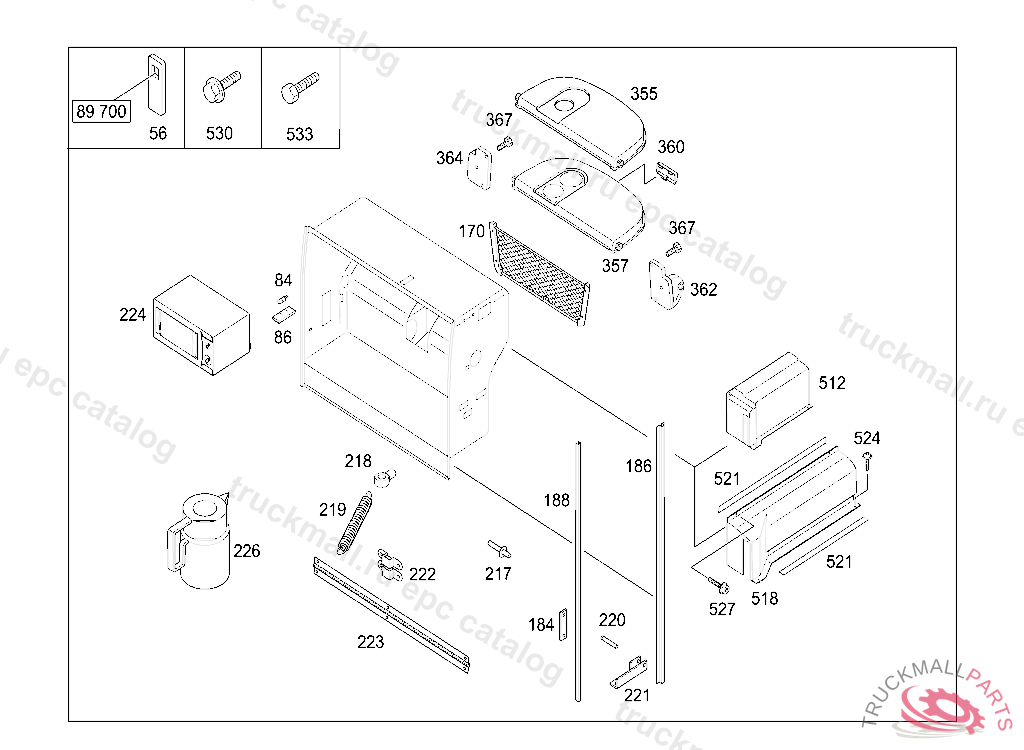

TRAVEGO 17 RHD 3 - ACHSER 632.007

84 TRUNKS AND CASES - 150 KITCHENETTE IL. 5

Поз.
Артикул
Описание
56
A0009881061
STRIKER PLATE
84
A0009820510
LIGHT EMITTING DIODE
84
N072601024131
BULB24V/5W
86
A0018205801
INTERIOR LAMP
86
A0005480382
SOCKET
170
A0008400220
ROOF RACK
170
A6329700092
LUGGAGE NET
184
A0008460576
STOP RIGHT
184
A0008460676
STOP LEFT
186
A0008450140
LEDGE LEFT
186
A0008450040
LEDGE RIGHT
188
A0008490227
RAIL
217
A0008440215
GUIDE
218
A0009905613
EYE BOLT
219
A0009933811
TENSION SPRING
220
A0009917501
PIN
221
A0008450514
BRACKET RIGHT
222
A0009930669
HOOD HINGE
223
A0009930869
HOOD HINGE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 07.2007
223
A0009930769
HOOD HINGE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 07.2007
224
A0008202906
MICROWAVE
226
A0008453423
THERMOS
226
A0008452923
THERMOS BOTTLE , Replaced By: A0008453423, +001A0008450324
355
A6298103666
FOLDING TABLE WITH HOLE
357
A6298103766
FOLDING TABLE CUP HOLDER
360
A6298160008
COVERING
362
A6298161531
CONSOLE LEFT
364
A6298161631
CONSOLE RIGHT
367
A0039907912
SCREW, SPECIAL SHAPE. SCREWM4 X 16
512
A6298450027
COVERING
518
A6298363102
COVERING
521
A0009872266
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
524
N000000000489
TAPPING SCREW4.5X13
527
A0039902512
SCREW
527
N000000002436
HEXALOBULAR BOLTM6X16
530
N910105008014
SCREW CLAMP ON BRACKET
530
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
533
N304017008021
SCREW PIPE CLAMP
999
A0038201326
CONTROL UNIT
999
A0059976489
COUPLING
999
A0118200110
SWITCH
999
A0148204404
ELECTRIC CABLE
999
A6298130028
CLIP
999
A6298130158
COVER
999
A6298130258
HOUSING
999
A6298404160
KITCHENETTE
999
A6298405660
KITCHENETTE
999
N000125006434
WASHER
999
A0008130437
COVERING ASHTRAY
999
A0008200869
CABLE HARNESS
999
A0008201637
CLUTCH
999
A0008202606
BOILER
999
A0008203106
CONTINUOUS-FLOW HEATER
999
A0008203206
CONTINUOUS-FLOW HEATER
999
A0008203906
BOILERVST
999
A0008204706
BOILER
999
A0008207898
HEATING ELEMENT
999
A0008231711
PLATE
999
A0008321259
FITTING ELBOW FITTING
999
A0008360252
HINGE
999
A0008400055
TAKE-UP DEVICE
999
A0008430330
COVERING
999
A0008430614
CUP HOLDER
999
A0008430714
CUP DISPENSER
999
A0008450058
VALVE
999
A0008451214
BRACKET LEFT
999
A0008452223
CONTAINER
999
A0008453323
CONTAINER WATER RESERVOIR
999
A0009918070
CLIP
999
A0009942403
WASHER
999
A0009970404
THROTTLE
999
A0009977271
FITTING
999
A0018204701
INTERIOR LAMP
999
A0018320323
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0029971468
CONNECTOR
999
A0035404605
CABLE HARNESS
999
A0035454605
CONTROL UNIT CENTRAL LUBRICATION
