Главная
›
Mercedes
›
BUS
›
TOURISMO RH
›
632.025
›
91 FRONT SEATS
›
060 CO-DRIVER'S SEAT IL. 3

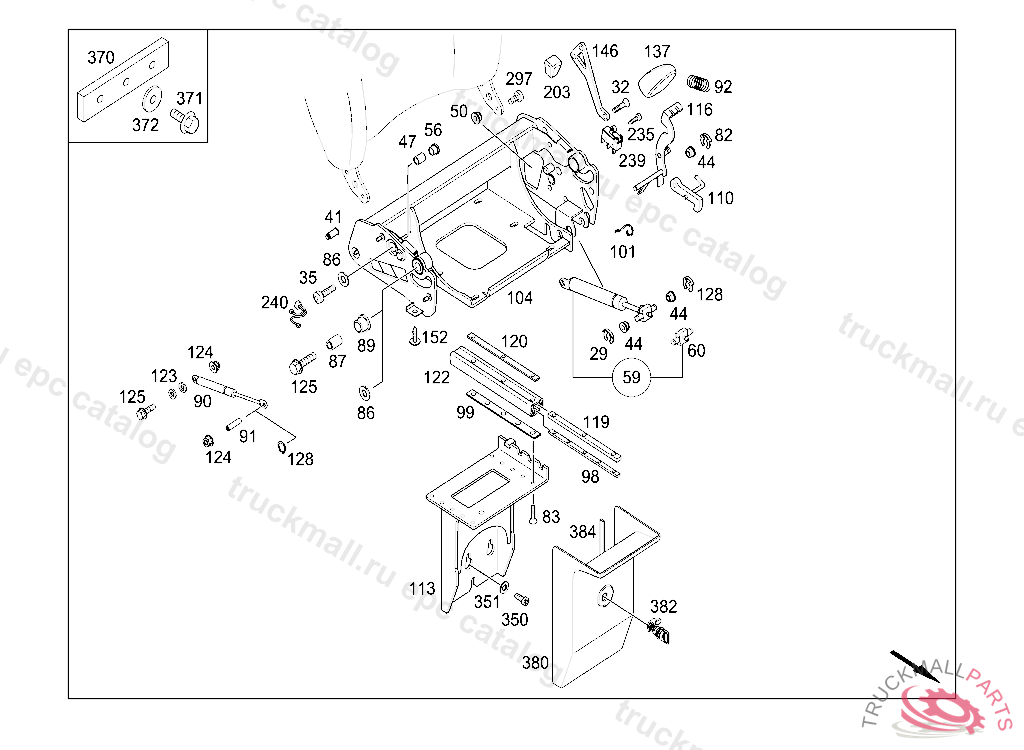

Mercedes A6329100095 - ZB TRAEGER
TOURISMO RH 632.025
91 FRONT SEATS - 060 CO-DRIVER'S SEAT IL. 3
Поз.
Артикул
Описание
29
A0009911725
WASHER
32
A0019908620
SCREW
35
A0039903712
SCREWM8X16
41
A6299500015
PIN
44
A6299590017
BUSHING FRONT
47
A6299590115
PIN SHORT 165MM
50
A6299590117
BUSHING REAR
56
A6299590917
BUSHING OUTSIDE
56
A6299590817
BUSHING INSIDE
59
A6299700064
GAS SPRING. STAY DIA., 22MM
60
A0009590120
SUPPORT
82
A0009911725
WASHER
83
A0019908120
SCREW W HEXAGON SOCKETM 8 X 16
86
N000125008445
WASHER PUMP TO CONSOLE
87
A6299920801
BUSH WITHOUT CHAMFER
89
A6299920801
BUSH WITHOUT CHAMFER
90
A0009115434
GAS SPRING
91
N000000006799
GRUB SCREW
92
A6299110034
SPRING TENSION SPRING
98
A6299420275
LEDGE150MM
99
A6329110197
UNDERLAYER
101
A6299590264
SPRING LEFT
104
A6329100304
SEAT FRAME
104
A6329100004
SEAT FRAMEWORK , Replaced By: A6329100304
110
A6329100061
DETENT
113
A6329100095
SUPPORT
116
A6329100271
LEVER
119
A6329110075
LEDGE
120
A6329110297
UNDERLAYER
122
A6329500095
RAIL
123
A0069900140
WASHER FRONT
124
N913023005002
NUT RELAY TO BRACKET M5
125
N910106008023
HEXAGON HEAD BOLT. SCREW STAY TO APPARATUS SUPPORT
125
N000000007063
HEXAGON HEAD BOLTM8X30
128
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
137
A6329100371
HANDLE
146
A6329190261
LEVER
152
N000000000529
SHEET METAL SCREW BRACKET TO FIRE WALL
203
A0009876345
LOCKING CAP
235
N000000000516
TAPPING SCREW3.5X16
239
A0028216751
SWITCH
240
A6298200813
ELECTRICAL WIRING HARNESS
240
A6298207704
ELECTRIC CABLE , Replaced By: A6298200813
297
A0029906522
SCREW
350
A0039903712
SCREWM8X16
351
N000125008445
WASHER PUMP TO CONSOLE
370
A6329110011
PLATE
371
N910105010006
SCREWM 10X20
372
A0049906782
WASHERM6
380
A6329210086
COVER
382
A0029883042
FASTENER
384
A0006820001
INSULATION2X12MM/L2000MM
