Главная
›
Mercedes
›
BUS
›
TOURISMO RH
›
632.025
›
68 PANELLING AND LINING
›

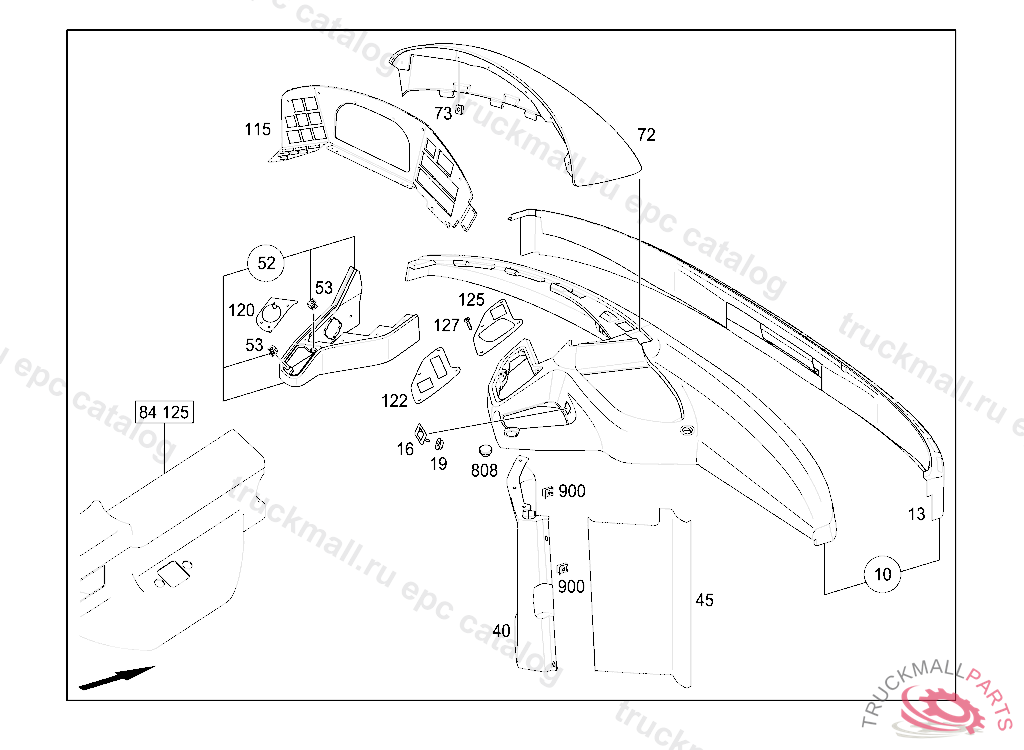

330 INSTRUMENT PANEL IL. 1
Mercedes A6336800211 - LU BEFESTIGUNGSPLATT
TOURISMO RH 632.025
68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 1
Поз.
Артикул
Описание
10
A6336800980
PANELLING
13
A6328302323
AIR DUCT
16
A6336803911
FASTENING PLATE
19
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
40
A6326890331
CONSOLE
45
A6326805223
SERVICING COVER ELECTRICAL COMPARTMENT
52
A6336801280
PANELLING
53
A6326871612
ATTACHMENT ANGLE BRACKET
72
A6336801380
PANELLING
73
A6326871612
ATTACHMENT ANGLE BRACKET
115
A6326801287
INSTRUMENT PANEL
120
A6326801611
PLATE
122
A6336800211
PLATE MOUNTING,AUTOMATIC SWITCH
125
A6326801811
PLATE , Replaced By: A6326802211
125
A6326802211
FASTENING PLATE
127
N000000000464
TAPPING SCREW HANDLE TO PANELLING
808
A0009984621
EXPANSION PLUG , Replaced By: A3579970186
900
A0039948845
CLOP NUT4,8MM/2,5-5,0MM
