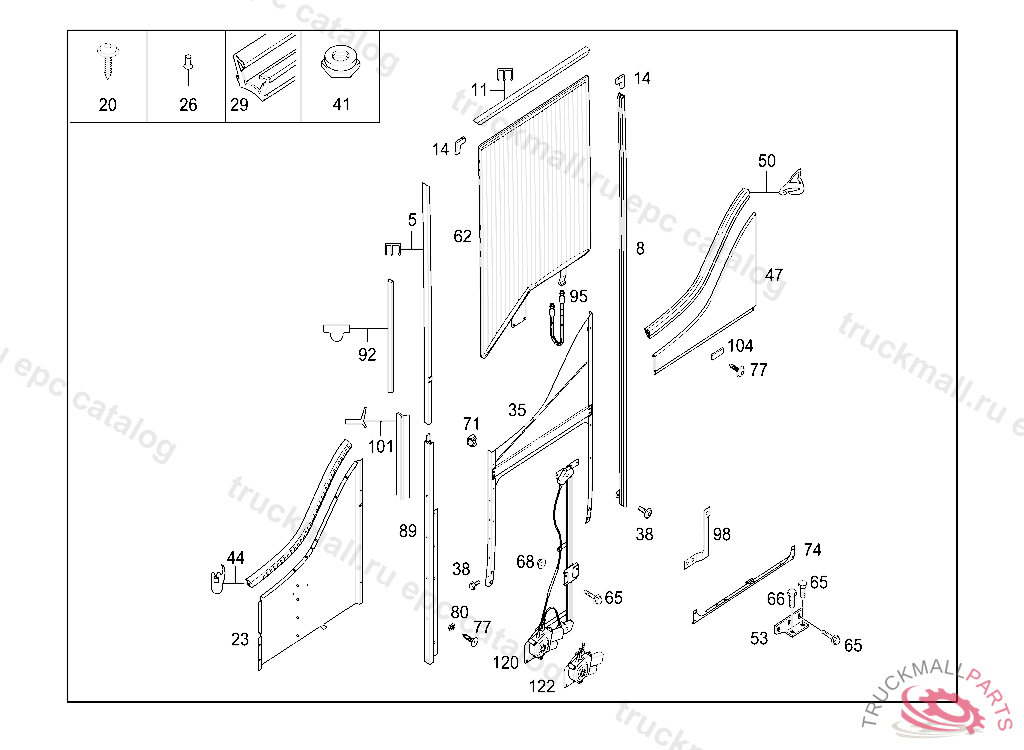

Поз.
Артикул
Описание
5
GUIDE RAIL A-PILLAR
8
GUIDE RAIL B-PILLAR
8
GUIDE RAIL B-PILLAR
11
WINDOW GUIDE TOP
14
ANGLE
20
TAPPING SCREW RAIL
23
COVERING
26
BLIND RIVET
29
WINDOW RUBBER RUNL4300MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
35
SEALING FRAME
35
WEATHERSTRIP
38
HEXALOBULAR BOLT. SCREW
38
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
41
NUTM4
44
SEAL
47
COVERING
50
RUBBER SECTION848LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
RETAINING RAIL
62
GLASS PANE
65
HEXAGON HEAD BOLT
66
SCREW BRACKET AND CLAMP M6X20
68
NUT , Replaced By: N913023006001
71
CAPTIVE NUTM6
74
SEALING RAIL BOTTOM
74
SEALING RAIL BOTTOM
77
TAPPING SCREW MOUNTING PLATE 3.5X9.5
80
WASHER BRACKET TO BATTERY CASE BRACKET
89
GUIDE RAIL
92
RUBBER STRIPL5200MM
95
HOSE
98
ANGLE
101
PROFILE SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
104
SPACER35X12X4MM
120
WINDOW REGULATOR ELECTRIC
122
ELECTRIC MOTORTO A 000 725 11 02
