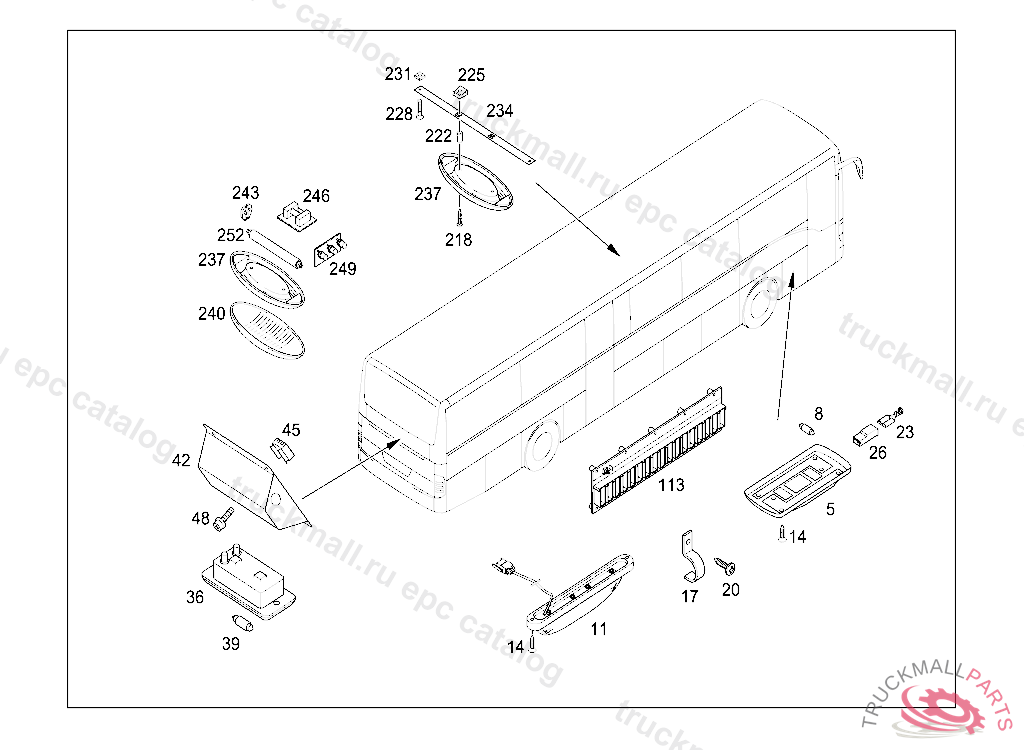

Поз.
Артикул
Описание
5
INTERIOR LAMP LUGGAGE COMPARTMENT LAMP
8
BULB24 V 10 W
11
DOME LAMP LUGGAGE COMPARTMENT,LEFT AND RIGHT LED
14
TAPPING SCREW3.5X19
14
COUNTERSUNK WOOD SCREWST3,5X19, Replaced By: N000000000478
14
SHEET METAL SCREW BRACKET TO FLOOR PLATE
17
CLAMP WIRE CABLE TO CAB FLOOR,038999
17
CLAMP CABLE MOUNTING
20
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
23
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
26
BOOT PIN BUSHING
36
LAMP IN ENGINE COMPARTMENT
39
BULB24 V 10 W
42
BRACKET
45
CLIP FASTENER
48
SHEET METAL SCREW BRACKET TO FLOOR PLATE
113
PLATE DISTRIBUTOR BLOCK TO SUPPORT
218
TAPPING SCREW. SHEET METAL SCREW4.8X16
218
TAPPING SCREW MOUNTING, HANDLE MBN 10169-ST3.5X19-R
222
CONTAKT SOCKET
225
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
228
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
231
NUTM6
234
BRACKET
237
INTERIOR LIGHTLED
237
INTERIOR LIGHT24V DC 8W, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.04.2011
237
DOME LAMP24V DC 8W, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)31.03.2011
240
LENS
243
LAMP BRACKET
246
BALLAST CONTOLERTO: A 613 820 07 01
246
BALLAST CONTOLER , Replaced By: A0008212661
249
PRINTED CIRCUIT BOARDLED, Replaced By: A0018203411
249
PRINTED CIRCUIT BOARDLED, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)31.03.2011
249
PRINTED CIRCUIT BOARD WHITE, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.04.2011
252
LAMP FLOURESCENT TUBES TO A6328200601
252
LAMP FLOURESCENT TUBES TO A0028204401
