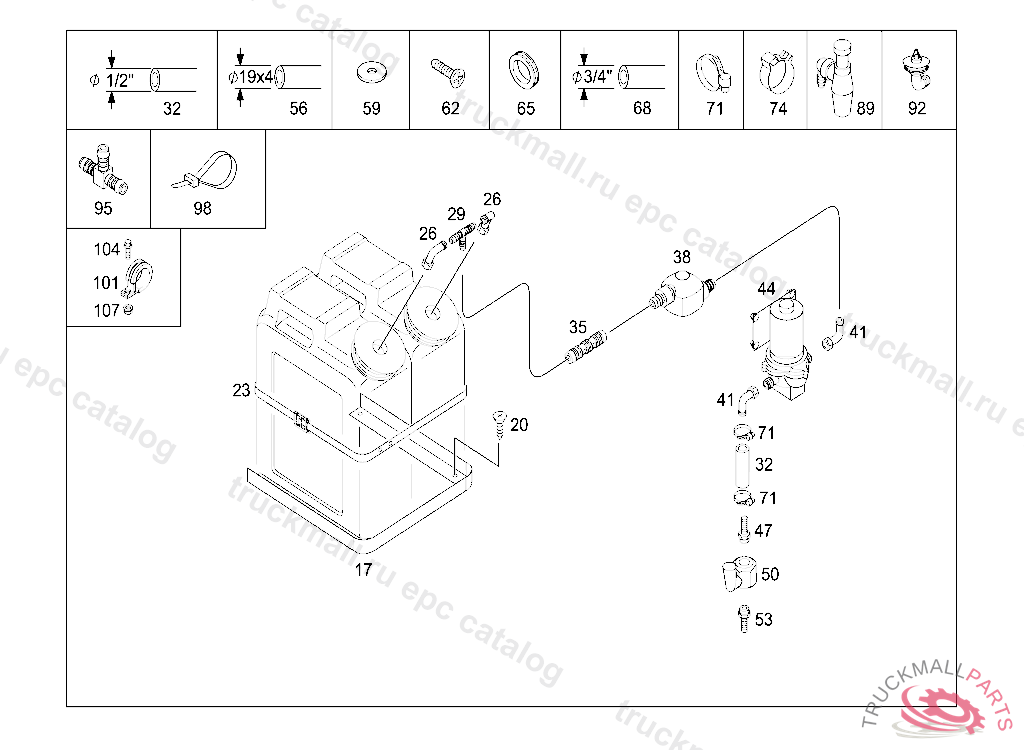

Поз.
Артикул
Описание
17
BRACKET USED FOR WATER RESERVOIR
20
SHEET METAL SCREW AIRBAG IN GLOVE COMPARTMENT B 3.5X16
23
BAND
23
BAND
26
FITTINGWINKELSTUTZEN1/2" - KEG
29
T-FITTING
32
WATER HOSE DRINKING WATER PVC MIT GEWEBEI12 M, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
35
COUPLING
38
SCREEN
41
SCREW CONNECTION
44
PUMP DRINKING WATER 24V
47
CONNECTOR
50
BALL COCK3/8"
53
FITTING12 MM - 3/8"
56
HOSE LINE10 X 2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
59
WASHER
62
TAPPING SCREW BRACKET TO SUPPORT
62
TAPPING SCREW RAIL
62
TAPPING SCREW CLOTHES-HOOK TO BODY
62
TAPPING SCREW COVER AND BRACKET TO CAB CORNER PILLAR
65
GROMMET
68
HOSE19 X 4
71
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
74
TERMINAL
89
BOTTLE SIPHON
89
BOTTLE SIPHON
92
ELBOW FITTING PLASTIC 1 1/4" X 20 - 24
95
CONNECTION FITTING
98
CABLE TIE LINE MOUNTING 375X8.4MM
101
CLAMP30/25 RSGU
101
MOUNTING CLAMP28/15
101
CLAMP DELIVERY AND SUCTION LINES TO FRAME
104
SCREW BRACKET AND CLAMP M6X20
107
NUT BRACKET TO FIRE WALL
999
TUBE ELBOW FITTING WINKEL 3/4" UNTER WASCHTISCH
999
CONNECTION FITTING
999
PIPE SECTIONPVC GERADE30 X 1,5 X 660
999
PIPE SECTIONPVC GERADE30 X 1,5 X 200
999
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
