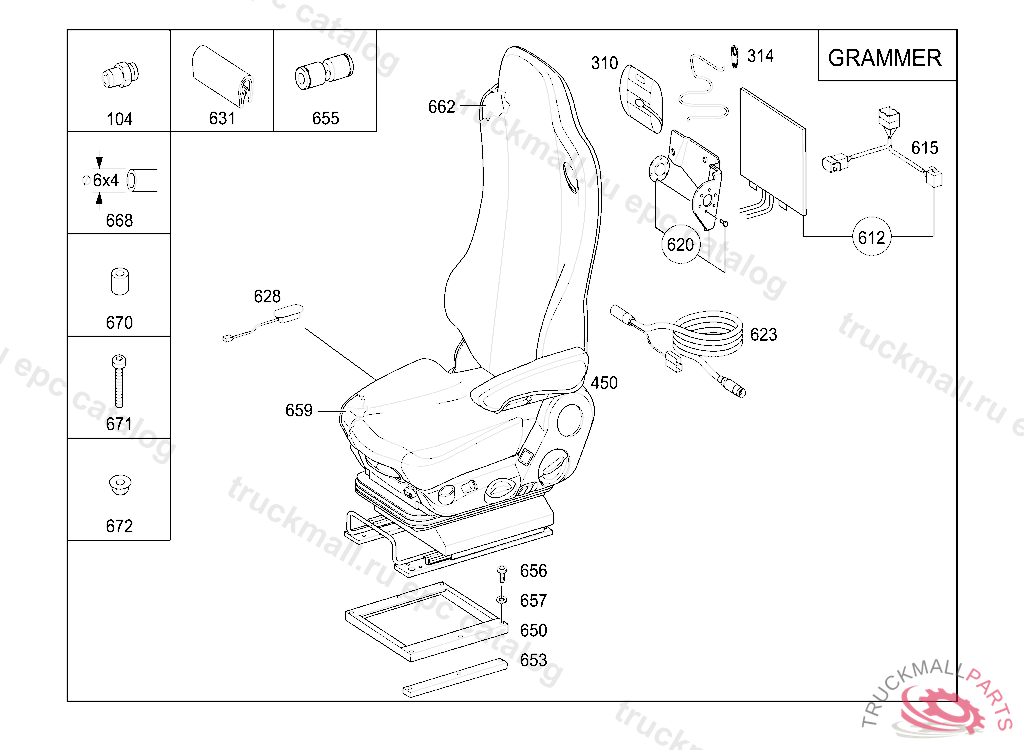

Поз.
Артикул
Описание
450
FRONT SEAT
450
FRONT SEAT
612
SEAT HEATING
615
ELECTRICAL WIRING HARNESS
620
BRACKET
620
BRACKET
623
MULTI POLE LINE MICROPHONE
650
CONSOLE 50 MM INCREASE RAL 7021 SM, Replaced By: A6299100557
650
CONSOLERAL 7021 SM
653
CONSOLE RIGHT
653
CONSOLE LEFT
655
COUPLING DRIVER'S SEAT SA 48084
656
SCREWM 8X12
656
SCREWM10X40T50
656
SCREWM10X60 T50, Replaced By: A0009902129
656
SCREWM10X80 T50
657
WASHER PUMP TO CONSOLE
659
COVER COVER TO SEAT CUSHION, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
659
COVER FRONT SEAT CUSHION SEAT CUSHION, COVER LIKE PASSENGER SEAT MSG 90.6, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
662
COVER COVER TO BACKREST, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
662
COVER FRONT SEAT BACKREST COVER TO BACKREST MSG 90.6, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
662
BACKREST PANELING LEATHER TRIM
662
BACKREST COVER LEATHER TRIM
662
COVER FRONT SEAT BACKREST BACKSEAT, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
670
SLEEVE12X2X11
671
HEXALOBULAR BOLT
672
NUT HORN TO BRACKET M8
