Mercedes A0109976482 - ПЛАСТИКОВАЯ ТРУБКА

TOURISMO RH-M 632.026

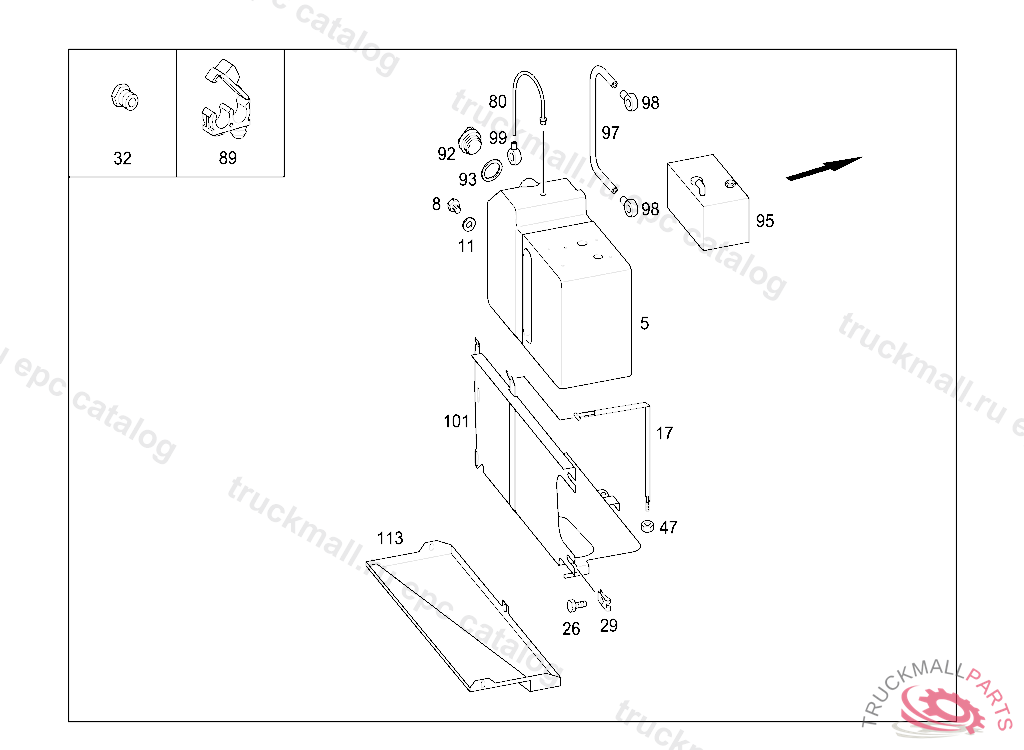

48 OIL TANK - 020 ENGINE OIL AUTOMATIC REPLENISHMENT IL. 1

Поз.
Артикул
Описание
5
A6284801401
OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT " GROENEVELD "
8
N007604018109
SCREW PLUG
8
N000000005441
SCREW PLUG, FILLING
11
N007603018104
SEAL RING SOLENOID VALVE A 18X24
17
A6284800321
STRAP OIL TANK,100688
17
A6284800021
STRAP OIL TANK
26
N910105008041
SCREW , Replaced By: N910143008000
29
A0049941945
NUTM8
32
N915008008407
FITTINGD10MM
47
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
80
A0009979052
HOSE FROM 3/2-WAY VALVE TO SHIFTING CYLINDER, ORDER BY THE METER
89
A1201580440
BRACKET
92
A0000180702
CAP OIL REFILLING
93
A0000180180
GASKET , Replaced By: A1020180080
95
A6285400745
CONTROL UNIT AT OIL TANK
97
A0109976482
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
98
A6284800025
ELBOW FITTING
99
A6284800125
ELBOW FITTING
101
A6334800339
SUPPORT
113
A6334810204
COLLECTING PAN
