Mercedes A6337550188 - BETAETIGUNGSSTANGE R

TOURISMO RH-M 632.026

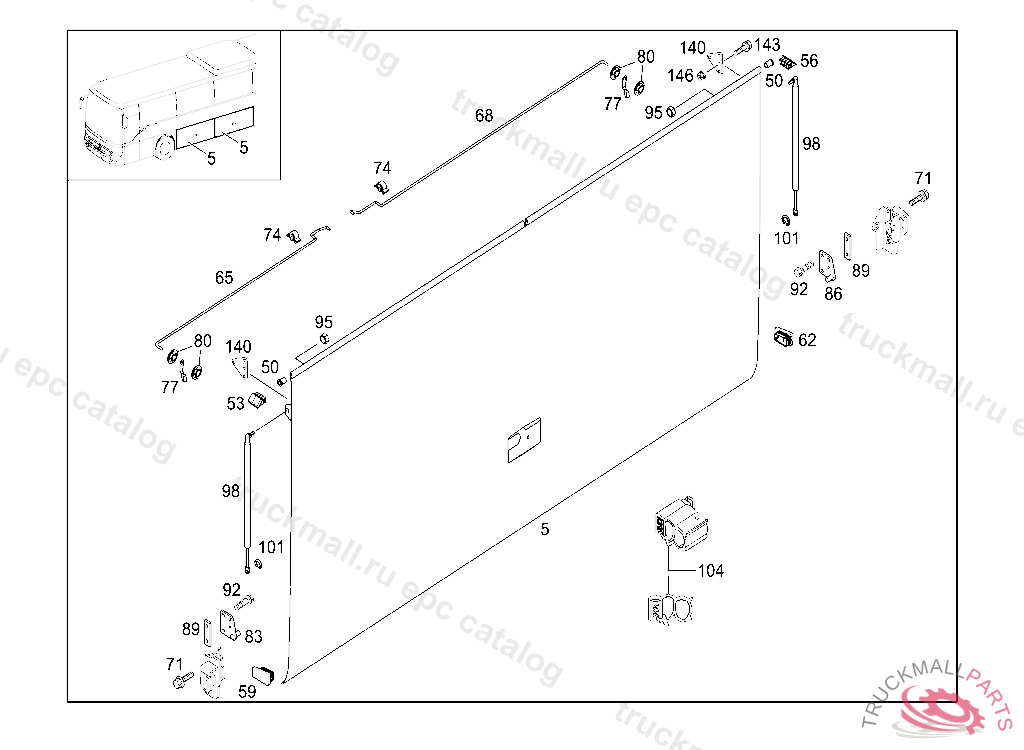

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 4

Поз.
Артикул
Описание
50
A0009926205
BUSHING
53
A0009878945
LOCKING CAP
56
A0009879045
LOCKING CAP
59
A0009877645
LOCKING CAP
62
A0009877745
LOCKING CAP
65
A6297540019
STRUTL646 MM
65
A6297540219
ROD. STRUTL437 MM
65
A6327541619
ROD LEFT L431MM
65
A6337550488
ROD LEFT L747MM
65
A6337550088
ROD LEFT L655MM
65
A6297546119
STRUTL372 MM
68
A6297546219
STRUTL423 MM
68
A6327550588
RODL883 MM
68
A6297540319
ROD. STRUTL498 MM
68
A6327541719
ROD RIGHT L787MM
68
A6297540119
STRUTL707 MM
68
A6337550188
ROD RIGHT L707,5MM
71
N910105006002
HEXAGON HEAD BOLT
77
A0007580042
LOCK
80
A0009940145
LOCK
83
A0007580003
STRIKER
86
A0007580103
STRIKER
89
A6297550111
PLATE
92
N910105008041
SCREW , Replaced By: N910143008000
95
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
98
A6297500036
SPRING PNEUMATIC SPRING 330N
98
A6297500936
SPRING PNEUMATIC SPRING 520 N
101
N000471008000
LOCK RING
104
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
140
A6337541914
BRACKET
143
N910105006004
SCREW , Replaced By: N914146006102
146
N910112006001
NUT , Replaced By: N913023006001
