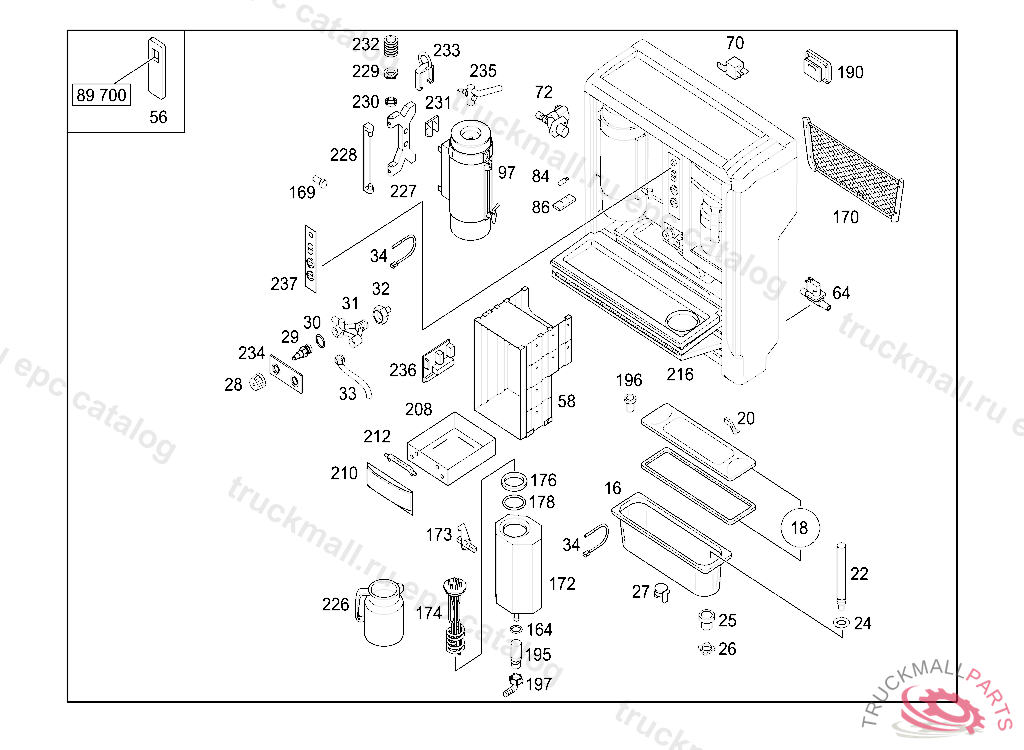

Поз.
Артикул
Описание
16
ELEKTROKOCHER SAUSAGE COOKER VST
16
HOT PLATE SAUSAGE COOKER BEHAELTER MIT HEIZUNG
16
ELEKTROKOCHER SAUSAGE COOKER VST
16
COOKER SAUSAGE COOKER, UP TO IDENT NO. WEB 102744 EXCEPT FOR WEB 102753 , WEB 102787 , WEB 102804
18
COVER FOR COOKER WITH GASKET
18
COVERING WITH GASKET, Replaced By: A0008400036
20
BRACKET FOR SAUSAGE COOKER COVER
22
TUBE1/2",150MM
24
SEAL RING12,37X2,62MM
25
PIPE SOCKET WATER DRAIN
26
SEAL
27
SWITCH
28
KNOB RED
28
KNOB BLUE
29
VALVE
30
GASKET
31
MIXING FAUCET
32
PIPE SOCKET
33
DISCHARGE
34
TEMPERATURE SENSOR CENTRAL
56
STRIKER PLATE
58
HOUSINGSCHRANK-GEHAEUSE GROSS
58
DRAWER COMPARTMENTSCHRANK GEHAEUSE KLEIN
64
SWITCH
70
RELAY50A
70
RELAY40A
70
RELAY
72
SOLENOID VALVE PLASTIC 24 VDC
84
BULB24V/5W
84
LIGHT EMITTING DIODE
86
INTERIOR LAMP
86
SOCKET
97
COFFEE MACHINEMOD.05(40T), FROM IDENT NO. WEB 102745 ALSO INSTALLED ON WEB 102753 , WEB 102787 , WEB 102804
164
SEAL RING
169
PLUG
170
LUGGAGE NET
170
ROOF RACK
172
CONTAINER WATER RESERVOIR
173
LEVEL SWITCH
174
COOKER HEATING ELEMENT
176
MOUNTING RING
178
SEAL RING
190
HOUSING ASHTRAY
195
CONNECTION FITTING
196
PIPE SOCKET
197
DISCHARGE FITTING
208
DRAWER MINOR
208
DRAWER MAJOR
210
COVERING
212
BRACKET
216
FLAP
226
THERMOS
226
THERMOS BOTTLE , Replaced By: A0008453423, +001A0008450324
227
BRACKET
228
LEDGE
229
SETTING DIAL
230
WASHER
231
DETENT
232
SPRING
233
CLAMP
234
PLATE
235
WATER FAUCET
236
SHEET BARS
237
ELECTRICAL UNIT OPERATING UNIT
999
KITCHENETTE
999
SWITCH
999
ADHESIVE THREAD LOCK 50G
999
CONTROL UNIT
999
CONTROL UNIT CENTRAL LUBRICATION
999
CABLE HARNESS
999
INTERIOR LAMP
999
THROTTLE
999
WASHER
999
CLIP
999
CONTAINER WATER RESERVOIR
999
CONTAINER
999
BRACKET LEFT
999
CUP DISPENSER
999
CUP HOLDER
999
COVERING
999
TAKE-UP DEVICE
999
HINGE
999
FITTING ELBOW FITTING
999
PLATE
999
BOILER
999
BOILERVST
999
CONTINUOUS-FLOW HEATER
999
CONTINUOUS-FLOW HEATER
999
BOILER
999
CLUTCH
999
CABLE HARNESS
999
COVERING ASHTRAY
