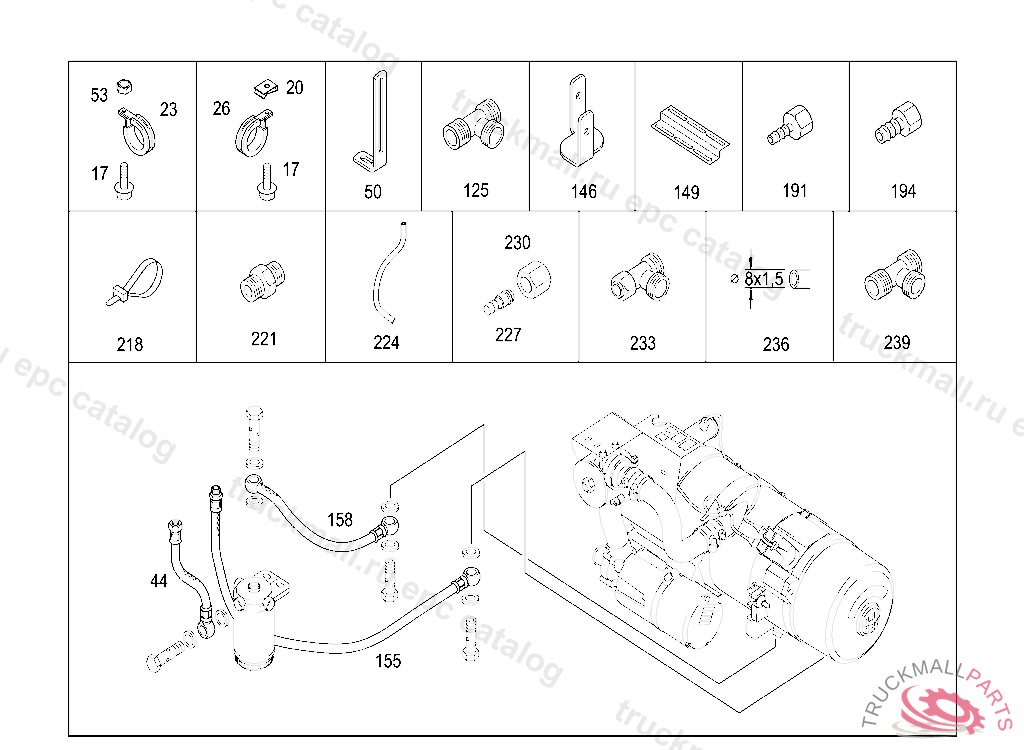

Поз.
Артикул
Описание
17
SCREW BRACKET AND CLAMP M6X20
17
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
20
LOCK. NUT , Replaced By: A0039941745
20
NUT
23
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
23
CLAMP , Replaced By: N916016010211
23
CLAMP10/15
26
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
26
CLAMP
26
CLAMP LINE MOUNTING
26
CLAMP DELIVERY AND SUCTION LINES TO FRAME
26
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
26
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
44
FUEL HOSE
50
BRACKET
53
NUT BRACKET TO FIRE WALL
53
NUT , Replaced By: N913023006001
53
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
53
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
125
T-FITTING18/14/18
125
T-FITTING
146
BRACKET TO MOUNT FUEL LINES
149
RAIL LINE MOUNTING 115 LG.
155
FUEL HOSE
158
FUEL HOSE
191
CONNECTOR
191
CONNECTORM14X1,5
194
CONNECTORM16X1,5
218
CABLE TIE LINE MOUNTING 375X8.4MM
221
FITTING
224
HOSE8X15X350MM, TO BE ADAPTED DURING ASSEMBLY
227
FITTING. OUTLETM16X1,5MM
227
FITTING FUEL LINES
230
UNION NUT FEED LINE
230
NUT. UNION NUT RETURN
233
LOCK NUT
236
PLASTIC PIPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
239
T-FITTINGM10/M15/M10
