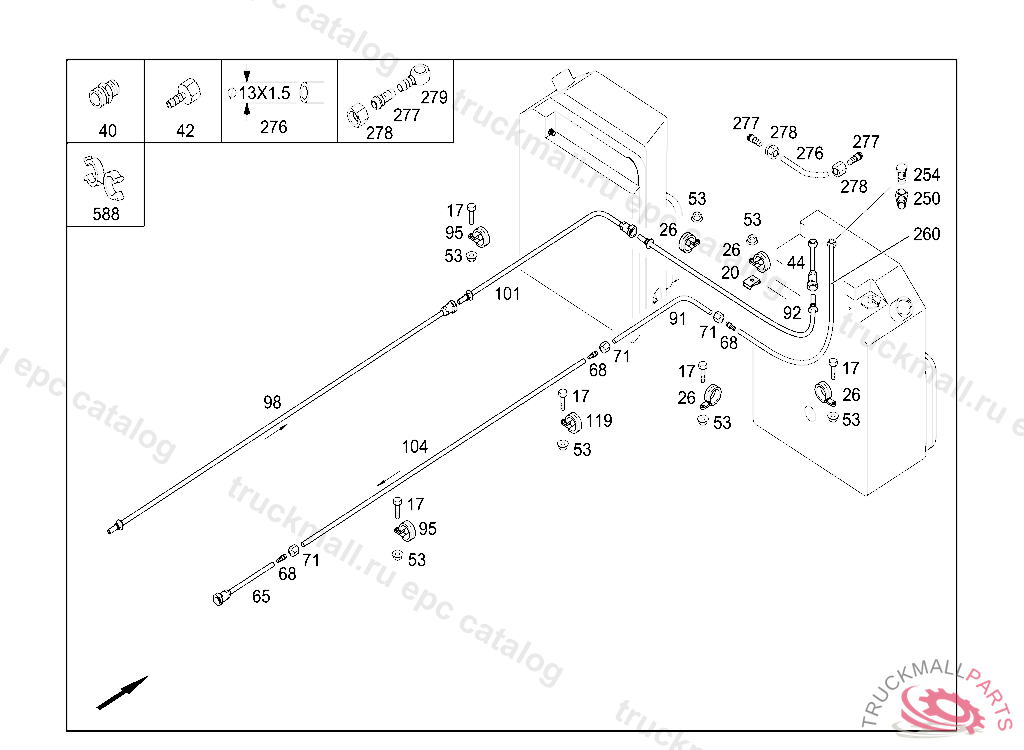

Поз.
Артикул
Описание
17
SCREW BRACKET AND CLAMP M6X20
17
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
20
NUT
20
LOCK. NUT , Replaced By: A0039941745
26
CLAMP
26
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
26
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
26
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
26
CLAMP DELIVERY AND SUCTION LINES TO FRAME
40
FITTINGM22/18X1,5MM
42
CONNECTOR
44
FUEL HOSE
53
NUT BRACKET TO FIRE WALL
53
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
53
NUT , Replaced By: N913023006001
53
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
65
FUEL LINE. SUCTION LINE
65
FUEL LINESLG750
68
FITTING FUEL LINES
71
NUT
71
UNION NUT FEED LINE
91
FUEL LINES
92
FUEL LINES FEED & RETURN
95
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
95
CLAMP LINE MOUNTING
98
FUEL LINES
101
LINE
101
FUEL LINESLG2400
101
LINE1950MM
104
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
104
FUEL LINE. HOSE FUEL TANK TO RING MOUNT 12 X 15 MM, ORDER BY THE METER, Replaced By: A0004763601
119
CLAMP16/15, Replaced By: A0019950842
119
MOUNTING CLAMP16/15
119
CLAMP , Replaced By: N916016015202
250
SCREW
254
FITTING
260
LINE
276
TRANSPARENT CABLE13X1.5, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.05.2012 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
277
FITTING RETURN LINE,K 169122
278
UNION NUT RETURN LINE
278
NUT LINE CONNECTION
279
BANJO UNION10/14
588
RANGE SPACER
