Mercedes A0029908022 - Болт

TOURISMO 15 RHD 632.036

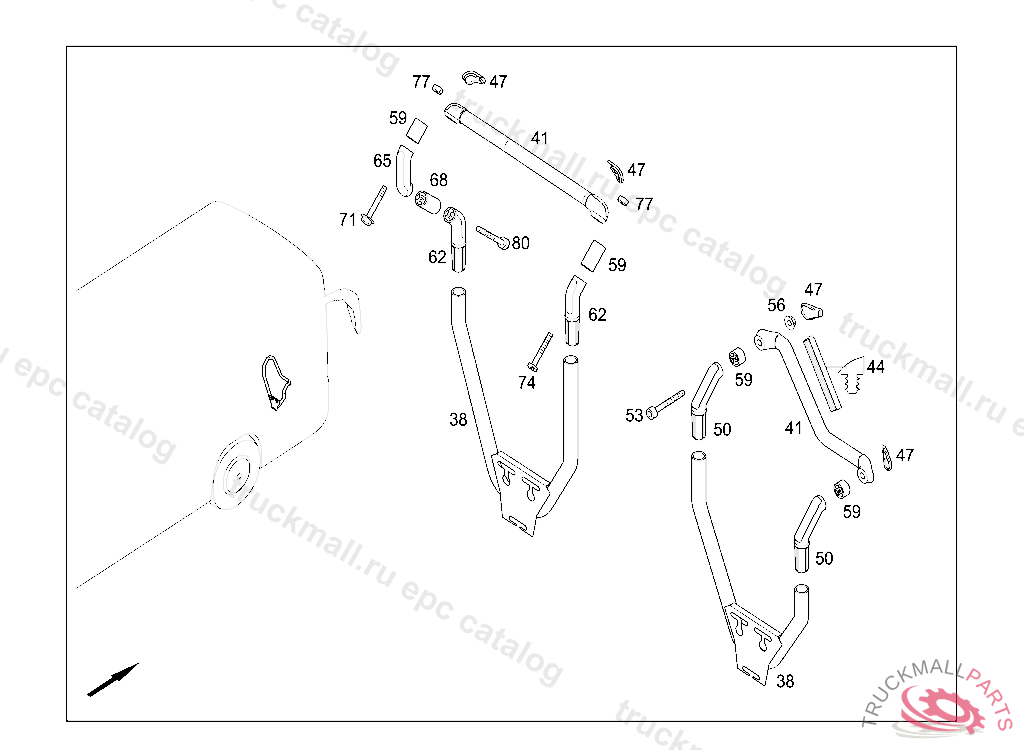

81 APPOINTMENTS - 250 GRAB HANDLE IL. 3

Поз.
Артикул
Описание
38
A6298101132
CLAMP , TO BE ADAPTED DURING ASSEMBLY
41
A6329100071
HANDLE
44
A6329110097
INSERTTO A 632 810 03 54, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
A6329190120
COVERING
50
A6277104832
CONNECTIONGR90
53
N000912008112
CAP BOLTM8X45
56
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
59
A6277117234
CONNECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
A6277103732
CONNECTIONGR45
65
A6277100432
CONNECTIONGR90
68
A0009972876
CONNECTION
71
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
74
N000000001432
HEXALOBULAR BOLT ABSORBER AT BOTTOM TO INTEGRAL CARRIER AT LEFT AND RIGHT
77
N304032008006
NUT
80
A0029908022
BOLT. SCREWM8X30MM
