Mercedes A0039909397 - Blindniet

TOURISMO 15 RHD 632.036

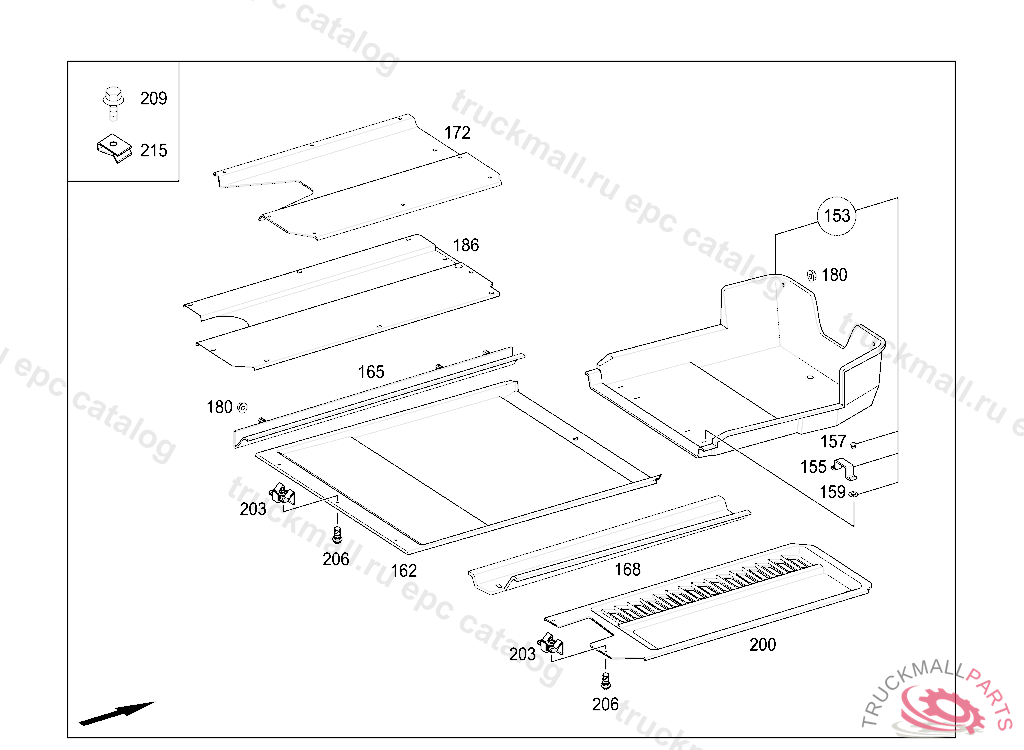

68 PANELLING AND LINING - 440 INSULATION IL. 12

Поз.
Артикул
Описание
153
A6296900007
COVERING FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
155
A6296930014
BRACKET FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
157
A0039909397
BLIND RIVET FRONT 4,8X12,70MM
159
A0069900140
WASHER FRONT
162
A6296930517
COVERING ENGINE
165
A6296900220
RAIL LEFT
168
A6296122170
RAIL RIGHT
172
A6296930317
COVERING EXHAUST MUFFLER COVERING
180
N913023008003
NUT HORN TO BRACKET M8
186
A6336930017
COVERING
200
A6296930617
COVERING RADIATOR COVERING
203
A0006940058
CLAMP
206
A0009845836
PIVOT9X15MM
209
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
209
N910105008041
SCREW , Replaced By: N910143008000
215
A0039941545
NUT
215
A0029941945
LOCK
215
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
