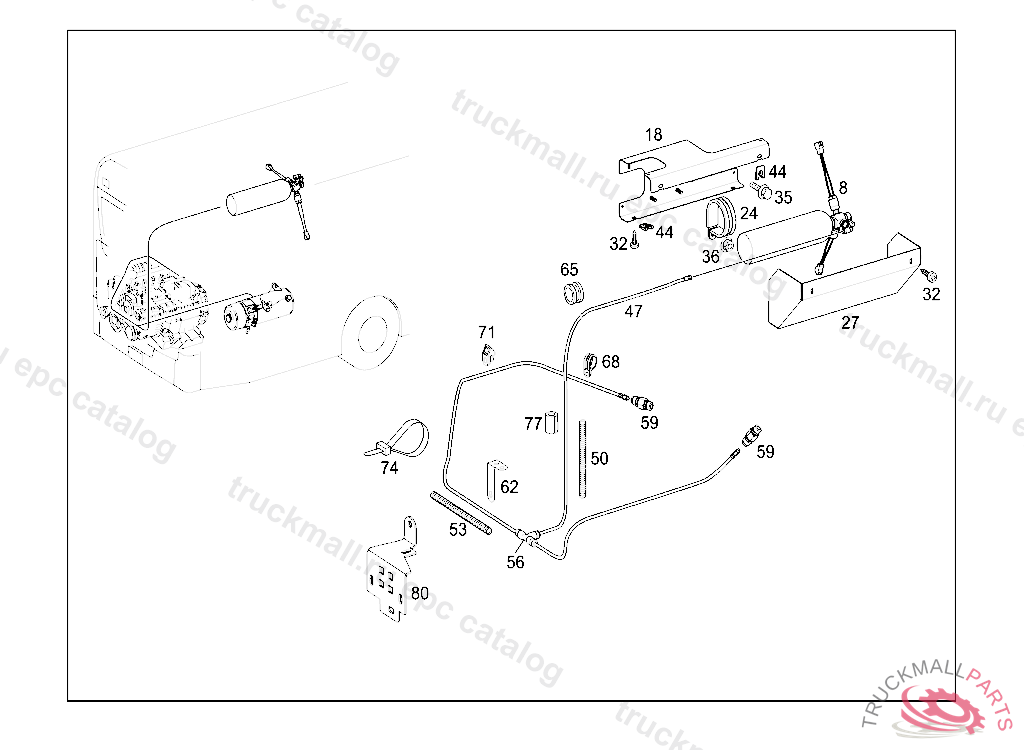

Поз.
Артикул
Описание
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT ANSCHL. 90 GRAD2DR. SCHALTER
8
PRESSURE TANK EXTINGUISHING AGENT
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
18
CONSOLE
24
CLAMP76/25MM
27
BOX HOUSING
32
SHEET METAL SCREW BRACKET TO SUPPORT
32
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
35
SCREW , Replaced By: N914146006102
35
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
36
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
36
NUT , Replaced By: N913023006001
44
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
44
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
44
LOCK NUT. SPRING NUT MOUNTING PARTS
47
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
50
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
SPRING , TO BE ADAPTED DURING ASSEMBLY
56
COUPLING T-FITTING
59
TEST CONNECTION
62
BRACKET
65
GROMMET
68
CLAMP LINE MOUNTING 8/15
68
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
71
RETAINING CLIP
74
CABLE TIE310X5MM
77
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
80
BRACKET
