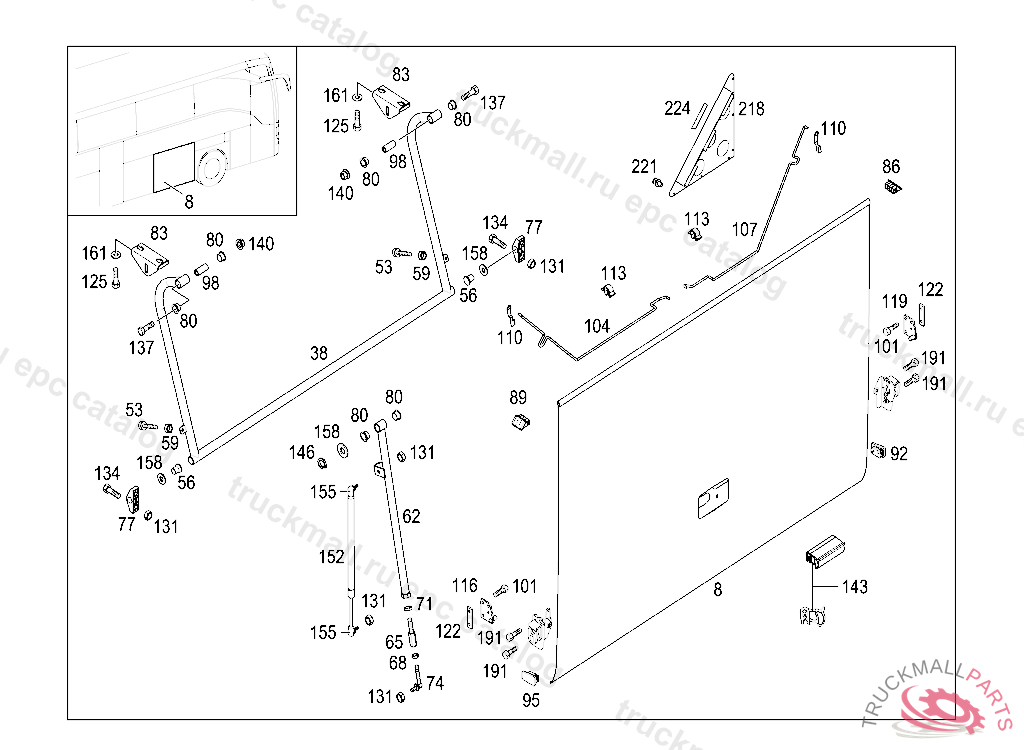

Поз.
Артикул
Описание
8
HINGED DOOR SWING FLAP L1540MM
8
FLAP LIFTING FLAPS OHNE LEISTE, L1540 MM
8
FLAP SWIVELLING FLAPS OHNE LEISTE, L1540 MM
38
ARML1540 MM
53
RUBBER BUFFER
56
PIN
59
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
62
ARM , Replaced By: A6297508356
62
ARM
65
SCREW
68
NUT
71
HEXAGON NUTM 12 X 1.5 LH
74
ARTICULATION PIECE
77
BRACKET
80
SLEEVE
83
BRACKET
86
LOCKING CAP
89
LOCKING CAP
92
LOCKING CAP
95
LOCKING CAP
98
SLEEVE
101
SCREW , Replaced By: N910143008000
104
STRUTL865 MM
104
OPERATING ROD LEFT L1188MM
104
STRUTL680 MM
104
STRUTL745 MM
107
STRUTL761 MM
107
OPERATING RODL936 MM
107
STRUTL816 MM
107
OPERATING ROD RIGHT L437MM
110
LOCK
113
CLAMP ELECTRIC CABLE TO DOOR INTERIOR PLATE
116
STRIKER
119
STRIKER
122
PLATE
125
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
131
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
134
SCREW , Replaced By: N910143008002
137
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
140
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
143
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
146
LOCK RING , 385.068,069 ON VEHICLES WITH DB CAB ONLY 385.019 FOR USE WITH SHORT MERCEDES-BENZ CAB
152
SPRING PNEUMATIC SPRING 800 N
155
JOINT BALL HEAD
158
WASHER
161
WASHER
191
HEXAGON HEAD BOLT
218
COVERING
221
EXPANSION RIVET. CLIP
221
RIVET COVERING TO BRACKET
224
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
