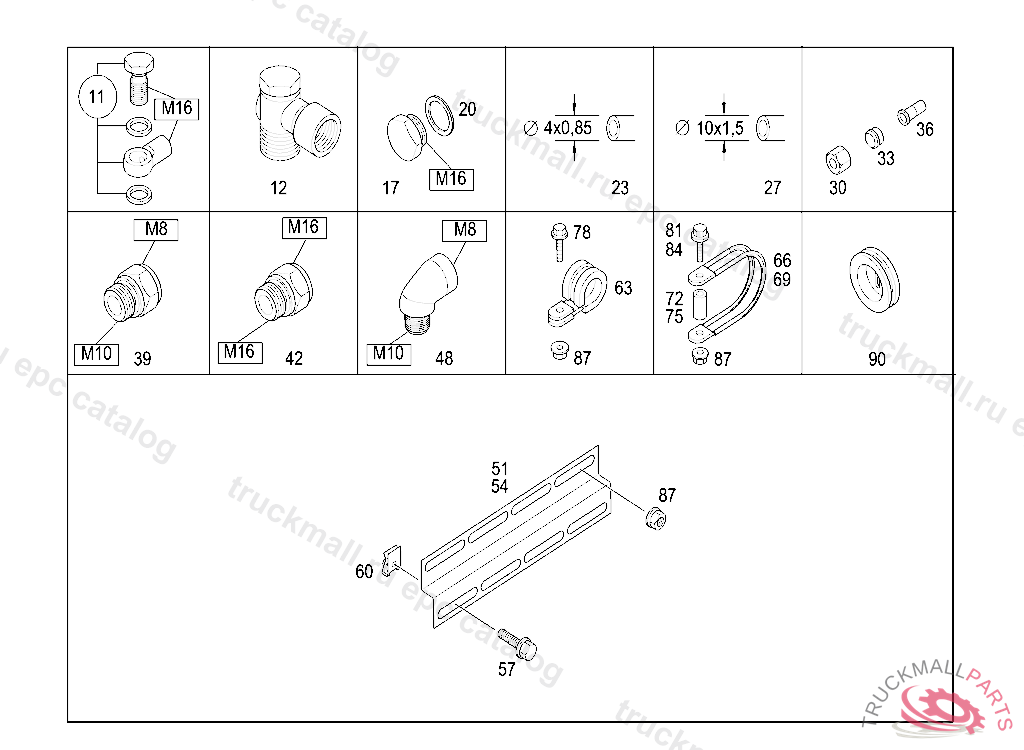

Поз.
Артикул
Описание
11
ELBOW FITTING LUBRICATING LINE TO DISTRIBUTOR VOGEL,M 16X1.5/16X1.5
11
ELBOW FITTING , Replaced By: A0049903971
12
ELBOW FITTING , Replaced By: A0049903971
12
ELBOW FITTING LUBRICATING LINE TO DISTRIBUTOR VOGEL,M 16X1.5/16X1.5
17
VERSCHLUSSSCHRAUBE. SCREW PLUG , Replaced By: A0005711256
20
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
23
HOSE FROM DISTRIBUTOR TO LUBRICATING POINTS 4X0.85 MM, ORDER BY THE METER
27
HOSE , ORDER BY THE METER, Replaced By: A0259978682
30
FITTING , Replaced By: A0009974334
33
SEAL CONE , Replaced By: A0019909567
36
PIN BUSHING FOR LINE CONNECTION BEKA-MAX , TO 025 997 86 82
36
PIN BUSHING , Replaced By: A0005730753
39
CONNECTOR TRAILER COUPLING,FRONT BEKA-MAX
39
CONNECTOR TRAILER COUPLING,FRONTVOGEL
42
CONNECTOR
48
ELBOW LINE CONNECTIONS VOGEL, M 10X1
51
"Z" SECTION225LG
54
RAIL LINE MOUNTING 115 LG.
57
SCREW PUMP TO BRACKET
60
LOCK NUT. SPRING NUT MOUNTING PARTS
63
CLAMP LINE MOUNTING
66
CLAMP LINE MOUNTING 110X15
69
CLAMP LINE MOUNTING
72
SPACER TUBE LINE MOUNTING 30 MM
75
SPACER SLEEVE
78
SCREW OIL TANK TO CLAMP
81
SCREW , Replaced By: N304017006026
84
SCREW SHACKLE TO CONSOLE
87
NUT
90
GROMMET FOR CABLE HARNESS DIA.: 10-14MM
