Главная
›
Mercedes
›
BUS
›
TOURISMO 17 RHD
›
632.037
›

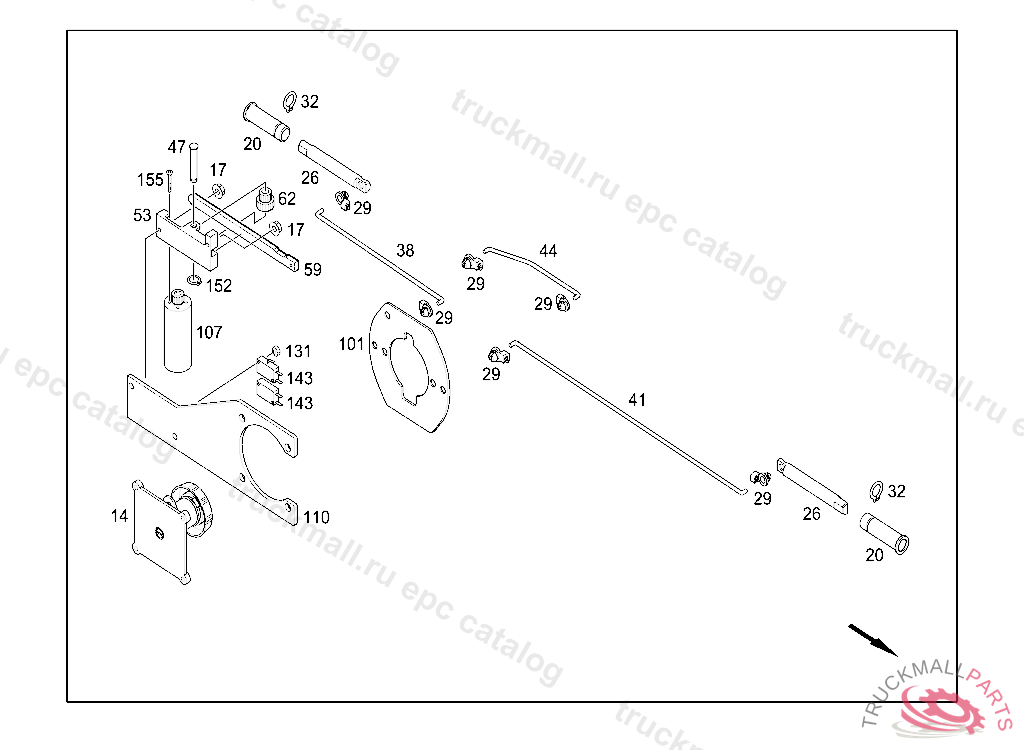

71 PARTITION PANEL
›
180 GRIP RAILS AND PARTITION PANELS IL. 4
Mercedes N304032003001 - Гайка
TOURISMO 17 RHD 632.037
71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS IL. 4
Поз.
Артикул
Описание
14
A6297600240
FASTENER SWIVEL TYPE,LEFT
14
A6327600040
FASTENER SWIVEL TYPE,LEFT
17
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
20
A6327330064
LATCH GUIDE
26
A6327230369
LOCK STRIKER
29
A0009916771
RETAINING CLIP
32
N000471016000
RETAINING RING. LOCK RING BRACKET TO BRACKET
38
A6327230569
PULL ROD LEFT 206MM
41
A6327330469
PULL ROD RIGHT 378MM
44
A6327231469
PULL ROD TOP
47
A0009915615
BALL PIVOT
53
A0007630531
CONSOLE
59
A6329190127
LINK
62
A6297230117
GEAR DOUBLE GEAR
101
A6327660019
PLATE
107
A0005403688
ELECTRIC MOTOR
107
A6297630004
MOTOR
110
A6327600023
CONSOLE
131
N304032003001
NUT BRACKET MOUNTING
143
A0038212351
SWITCHTO A 000 760 90 03
152
N000471005000
LOCK RING
155
N000000002545
SCREW ROLLER BLIND M3X10
