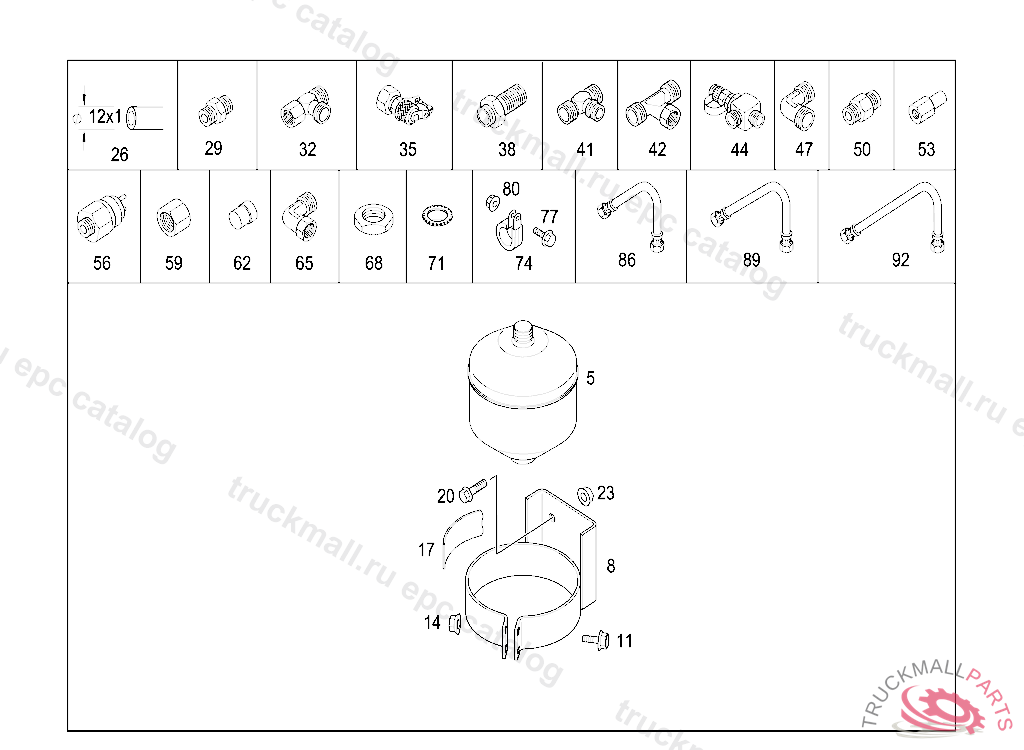

Поз.
Артикул
Описание
5
HYDRAULIC PRESSURE. DIAPHRAGM ACCUMULATOR5BAR
8
BRACKET
11
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
14
NUT HORN TO BRACKET M8
17
ADHESIVE STRIP. BASE40 X 2 MM
20
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
23
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
26
PIPE LINE12X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
29
FITTING LINE CONNECTION L12
29
CONNECTION FITTING , Replaced By: A0049971772
32
FITTING , Replaced By: A0019900970
32
FITTING T-FITTING,TEST CONNECTION L12
35
TEST CONNECTIONM16X2/M18X1,5
38
BULKHEAD FITTING FROM BRAKE VALVE,CONNECTION "21",TO FITTING
38
FITTING LINE CONNECTION L12
41
FITTINGL12
41
T-FITTING , Replaced By: A0009905270
42
FITTING , Replaced By: A0019903170
42
FITTING STEERING CYLINDER L12
44
FITTING HYDRAULIC CYLINDER L12/M18X1,5
44
SWIVEL FITTING HYDRAULIC CYLINDER L12/M18X1,5
47
FITTING , Replaced By: A0009907871
50
FITTING LINE CONNECTION L12/M18X1,5
53
CONNECTORD12/M10X1/40LG
56
SWITCH PRESSURE SWITCH 6,5BAR
59
UNION NUTAL12
62
CUTTING RINGS12
65
FITTINGL12
65
FITTING , Replaced By: A0019902771
68
NUT BRACKET TO SIDE MEMBER
68
NUTM18X1.5
71
SERRATED WASHERA19
74
CLAMP BRAKE HOSE BRACKET
77
SCREW BRACKET AND CLAMP M6X20
80
NUT BRACKET TO FIRE WALL
86
LINELG480
89
LINELG585
92
LINELG675
