Mercedes A0099874551 - Профиль окантовочный

TOURISMO 17 RHD 632.037

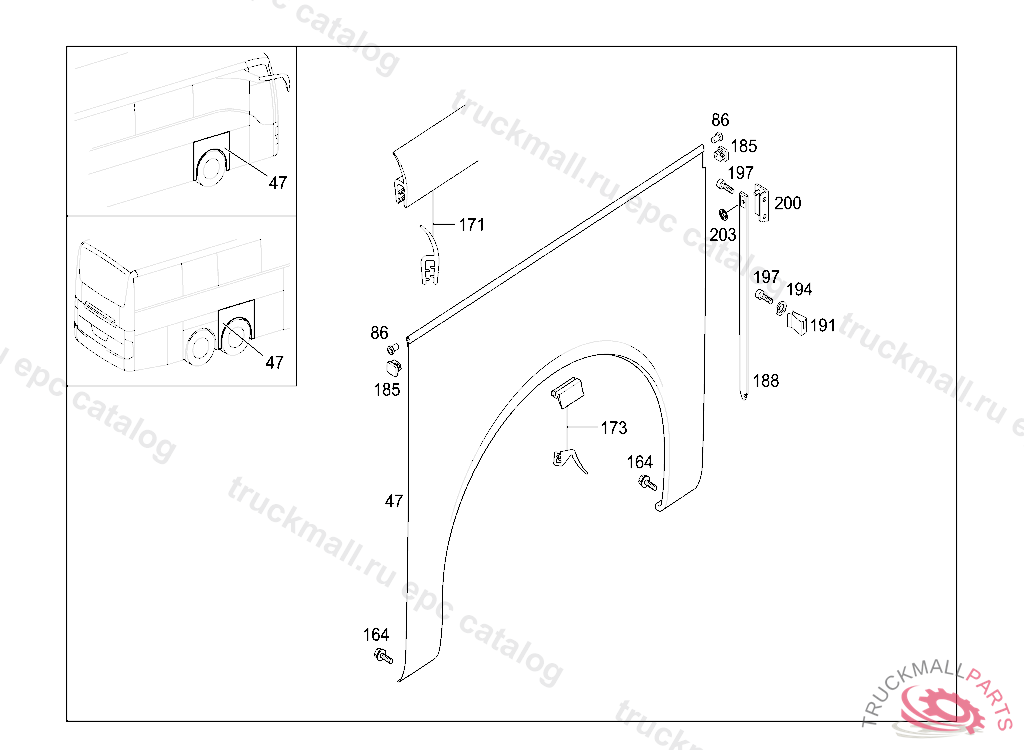

75 OUTSIDE FLAPS - 050 SIDE FLAPS,WHEEL COVERING IL. 13

Поз.
Артикул
Описание
47
A6327502006
FLAP
47
A6297503206
FLAP RIGHT
47
A6297500606
FLAP
86
A0009926205
BUSHING
164
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
164
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
171
A0099874551
SEALING SECTION
173
A6299870114
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
185
A0009876245
LOCKING CAP
188
A0007550034
RAIL
191
A0009932125
SPRING
194
N000137006203
SPRING WASHER CABLE TO ALTERNATOR
197
A0039908812
SCREWM6X12 TX30
200
A0007500112
ANGLE
203
A0019941445
FUSE JACKET TUBE WIRING HARNESS FASTENING
999
A0079893885
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
