Mercedes A0025459334 - FEINSICHERUNG / SCHM

S 415 GT 632.121

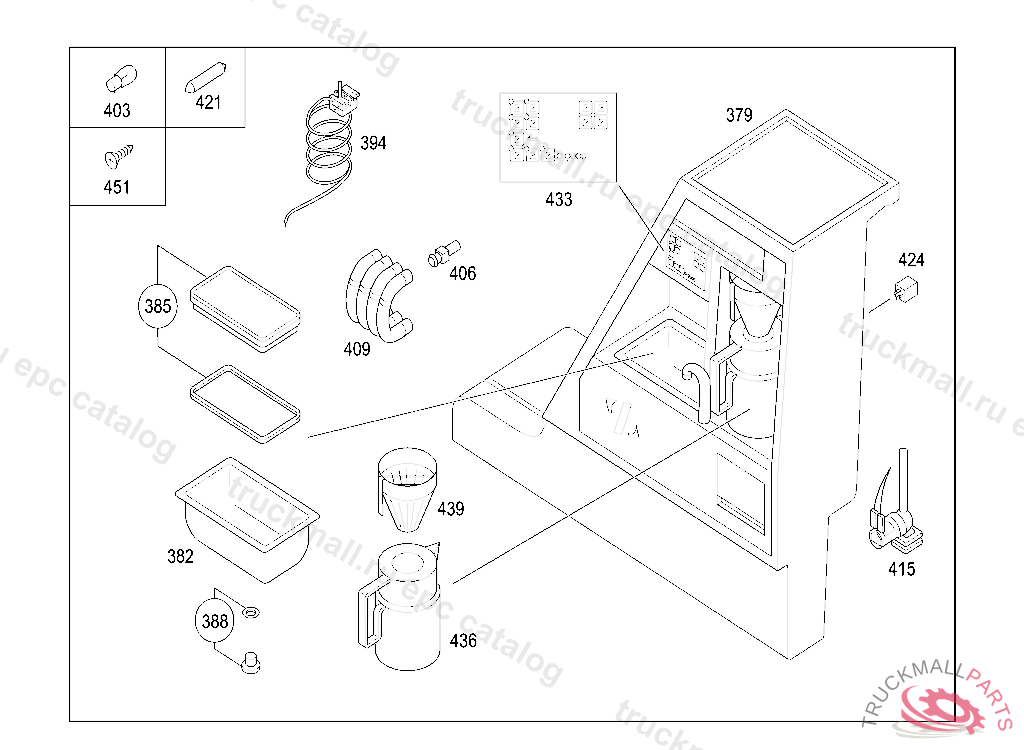

84 TRUNKS AND CASES - 150 KITCHENETTE IL. 10

Поз.
Артикул
Описание
379
A6298403760
KITCHENETTE , Replaced By: A6298405560
379
A6298405560
KITCHENETTE
382
A0008401745
COOKER SAUSAGE COOKER
385
A0008410039
COVER SAUSAGE COOKER
388
A0008430315
PLUG
394
A6268200610
SWITCH OVERHEATING
403
A6705440094
BULB
406
A6268660152
VALVE (CHECK VALVE)
409
A6298200098
HEATING PAD
415
A0018201226
SOLENOID VALVE
421
A0025459334
FUSE
424
A0009823923
RELAY
424
A0009823723
RELAY24V/50A
433
A0008430230
COVERING
436
A0008450523
THERMOS BOTTLE
439
A6268660065
FILTER BOWL
451
N007982003238
SHEET METAL SCREW
999
N000125006434
WASHER
999
A6298405660
KITCHENETTE
999
A6298404160
KITCHENETTE
999
A6298130258
HOUSING
999
A6298130158
COVER
999
A6298130028
CLIP
999
A6268200092
ROTARY KNOB , Replaced By: A0108205310
999
A0148204404
ELECTRIC CABLE
999
A0118200110
SWITCH
999
A0108205610
TEMPERATURE SENSOR CENTRAL
999
A0108205310
SWITCH
999
A0079893571
ADHESIVE THREAD LOCK 50G
999
A0059976489
COUPLING
999
A0038201326
CONTROL UNIT
999
A0035454605
CONTROL UNIT CENTRAL LUBRICATION
999
A0035404605
CABLE HARNESS
999
A0029971468
CONNECTOR
999
A0018320323
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0018204701
INTERIOR LAMP
999
A0009977271
FITTING
999
A0009970404
THROTTLE
999
A0009942403
WASHER
999
A0009918070
CLIP
999
A0009915570
CLIP
999
A0008453323
CONTAINER WATER RESERVOIR
999
A0008452223
CONTAINER
999
A0008451214
BRACKET LEFT
999
A0008450058
VALVE
999
A0008430820
RAIL
999
A0008430714
CUP DISPENSER
999
A0008430614
CUP HOLDER
999
A0008430330
COVERING
999
A0008400055
TAKE-UP DEVICE
999
A0008360252
HINGE
999
A0008321259
FITTING ELBOW FITTING
999
A0008231711
PLATE
999
A0008213763
FILL LEVEL SENSOR
999
A0008207898
HEATING ELEMENT
999
A0008204706
BOILER
999
A0008203906
BOILERVST
999
A0008203206
CONTINUOUS-FLOW HEATER
999
A0008203106
CONTINUOUS-FLOW HEATER
999
A0008202606
BOILER
999
A0008201637
CLUTCH
999
A0008200869
CABLE HARNESS
999
A0008130437
COVERING ASHTRAY
999
A0008130202
ASHTRAY
