Mercedes A6327601308 - LU VERRIEGELUNG

S 415 GT 632.121

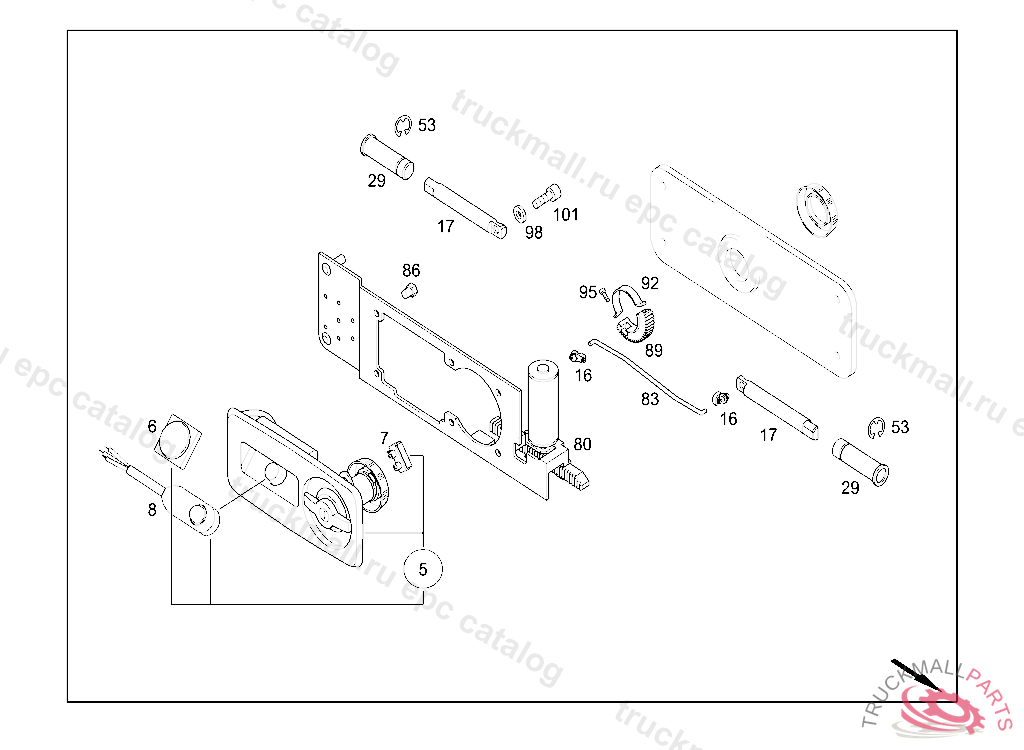

72 DOORS - 180 CLOSING SYSTEM IL. 2

Поз.
Артикул
Описание
5
A6327200166
LOCK , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.01.2012
5
A6297600160
HANDLE
5
A6297600360
HANDLE
6
A0007660068
ORNAMENTAL COVER MICRO-SWITCH
7
A0008212592
MICRO-SWITCH
8
A0008212492
MICRO-SWITCHTYP83123
16
A0009916771
RETAINING CLIP
16
A0059887678
CLIP HAND BRAKE CABLE,625236
17
A6327230369
LOCK STRIKER
29
A6327330064
LATCH GUIDE
53
N000471005000
LOCK RING
53
N000471016000
RETAINING RING. LOCK RING BRACKET TO BRACKET
80
A6327601308
LOCKING MECHANISM
83
A6327330269
PULL ROD400MM
86
A0009902562
NUT
89
A6297230017
GEAR (TOOTHED SEGMENT)
92
A6297630191
CLAMP
95
A0039907612
SCREWM4X8
98
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
101
A0039908212
SCREWM 5 X 10
