Mercedes A0006830006 - MONTAGERAHMEN

S 415 GT 632.121

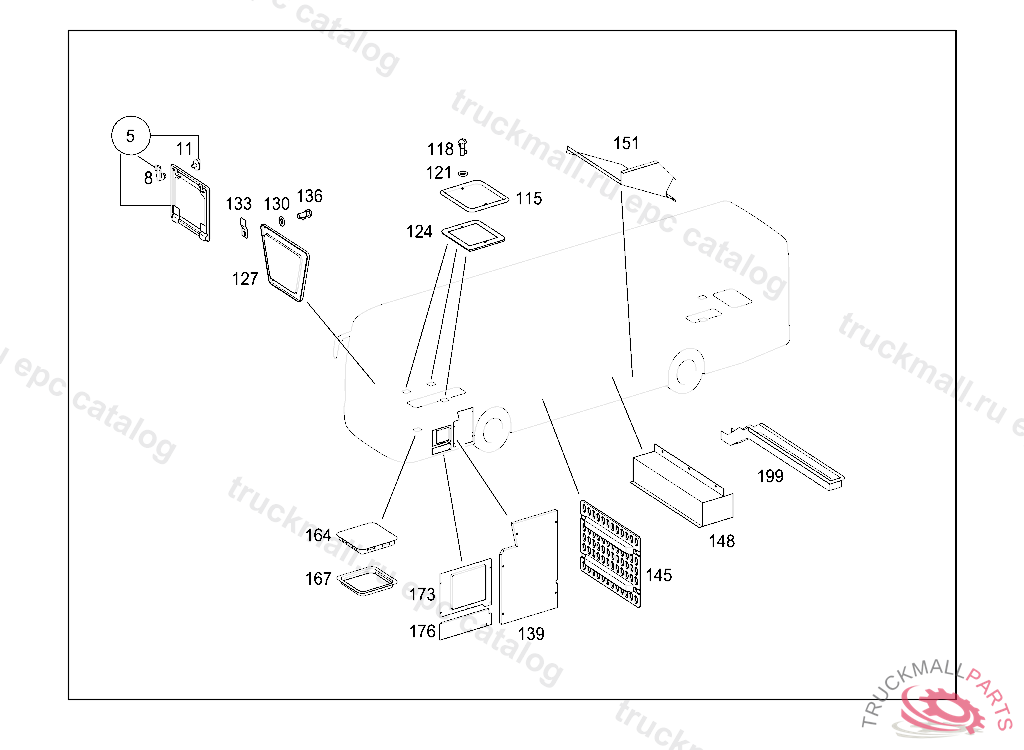

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6296801607
CLOSING COVER
8
A0009980695
ROTARY CATCH
11
A0009980595
ROTARY CATCH
115
A0006840018
COVER ABS
118
A0006830212
FASTENER SUPERFIX
121
N000125008445
WASHER PUMP TO CONSOLE
124
A0006800907
COVERING
127
A6296860010
PANELLING PANE WIPER
130
A0009911195
FASTENING CLIP
130
A0039908740
WASHER6 MM
133
A0019886142
FASTENER
136
A0009915807
PIVOT PIN
139
A6326820016
COVERING ELECTRICAL COMPARTMENT
145
A0006860007
COVERING VENTILATION IN LUGGAGE COMPARTMENT
148
A6296860507
COVERING CROSS MEMBER
151
A0006840518
COVER
164
A0006800323
SERVICING COVER
167
A0006830006
FRAME
173
A6326820816
COVER ELECTRICAL COMPARTMENT
176
A6326820916
COVER ELECTRICAL COMPARTMENT
199
A6296840477
PANELLING WATER PIPE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
