Mercedes A0029807064 - Пружина

S 415 GT 632.121

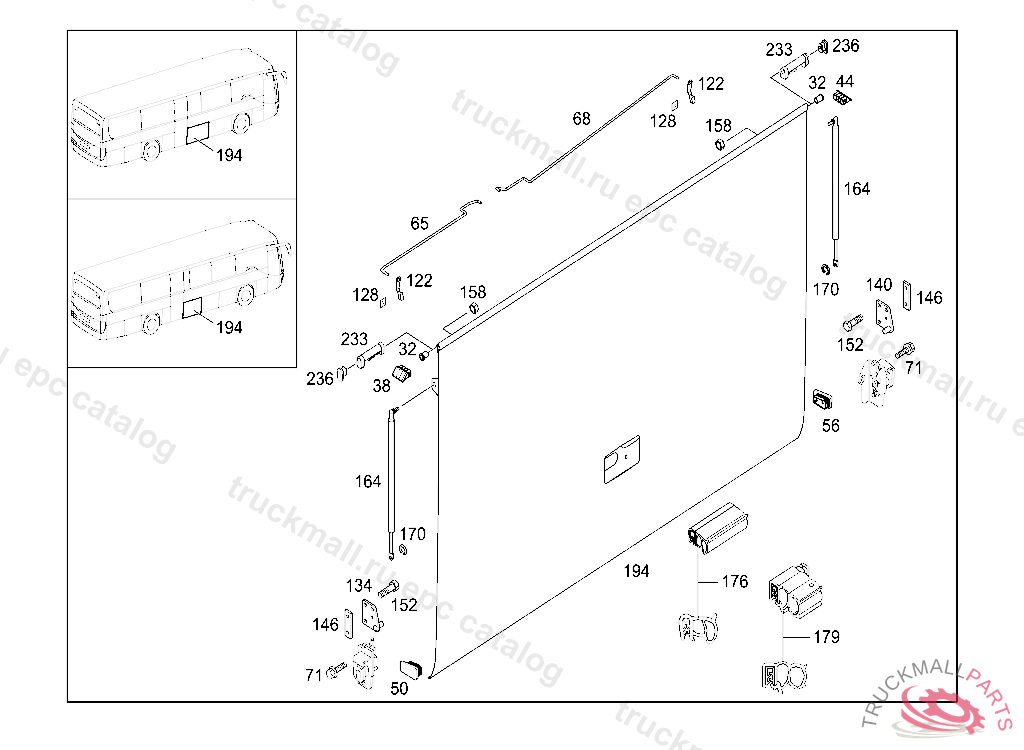

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 7

Поз.
Артикул
Описание
32
A0009926205
BUSHING
38
A0009878945
LOCKING CAP
44
A0009879045
LOCKING CAP
50
A0009877645
LOCKING CAP
56
A0009877745
LOCKING CAP
65
A6297540219
ROD. STRUTL437 MM
65
A6297540019
STRUTL646 MM
65
A6327550288
ROD LEFT L944,5MM
65
A6297544919
STRUTL742 MM
65
A6297546119
STRUTL372 MM
65
A6327550488
RODL822 MM
68
A6297546219
STRUTL423 MM
68
A6327550388
ROD RIGHT L997MM
68
A6297545019
STRUTL794 MM
68
A6297540119
STRUTL707 MM
68
A6327550588
RODL883 MM
68
A6297540319
ROD. STRUTL498 MM
71
N910105006002
HEXAGON HEAD BOLT
122
A0007580042
LOCK
128
A0009940145
LOCK
134
A0007580003
STRIKER
140
A0007580103
STRIKER
146
A6297550111
PLATE
152
N910105008041
SCREW , Replaced By: N910143008000
158
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
158
N913012008001
NUT HINGE LEVER TO MOUNTING
164
A0029807064
SPRING PNEUMATIC SPRING 250N
164
A6339800664
GAS SPRING630N
164
A0029804264
GAS PRESSURE STRUT420N
164
A6297500936
SPRING PNEUMATIC SPRING 520 N
164
A6297500036
SPRING PNEUMATIC SPRING 330N
170
N000471008000
LOCK RING
176
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
176
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
194
A6327503204
FLAP SWING FLAP L1579MM
194
A6337500395
HINGED DOOR SWING FLAP L1579MM
194
A6337500704
FLAP SWING FLAP L1579MM
233
A0009927003
BUSHING
236
A0009983823
PROTECTIVE CAP
