Mercedes A6296663111 - Platte

S 415 GT 632.121

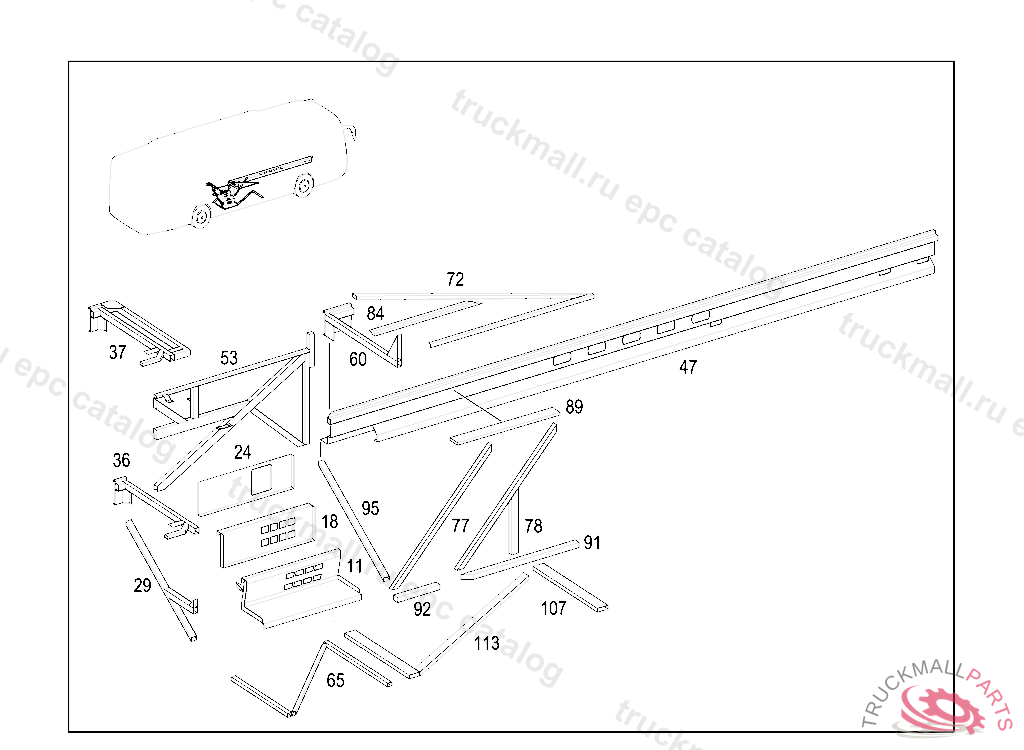

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 2

Поз.
Артикул
Описание
11
A6296602028
ROCKER PANEL BOTTOM 1000LG
11
A6326601728
ROCKER PANEL BOTTOM 860LG
11
A6326607728
ROCKER PANEL BOTTOM
11
A6296608028
ROCKER PANEL BOTTOM
11
A6296601828
ROCKER PANEL BOTTOM 780LG
11
A6326607928
ROCKER PANEL BOTTOM
18
A6296604728
ROCKER PANEL TOP 960LG
18
A6326668628
ROCKER PANEL CENTRAL
24
A6296664533
WEB TOP
24
A6296600733
WEB TOP 960LG
29
A6296601422
FRAME DOOR REAR PILLAR
36
A6326602522
FRAME
36
A6296604122
FRAME PEDESTAL,WEB 629001 13 520218
36
A6326602422
FRAME PEDESTAL,WEB 629001 13 520219
36
A6326603622
FRAME
37
A6326601022
FRAME
37
A6326602622
FRAME PEDESTAL
37
A6296601522
FRAME PEDESTAL
47
A6296100015
SIDE MEMBER FRONT RIGHT 4851LG
47
A6296101630
SIDE MEMBER
47
A6326106915
SIDE MEMBER
47
A6326106815
SIDE MEMBER
53
A6326603922
FRAME CROSS MEMBER 6-7
53
A6296602222
FRAME CROSS MEMBER 6-7/1365X820MM
60
A6326600522
FRAME
60
A6326601226
FRAME
60
A6326601626
FRAME
65
A6296601922
FRAME BELOW ENTRANCE
65
A6326604422
FRAME BELOW ENTRANCE
65
A6326604122
FRAME BELOW ENTRANCE
65
A6296604322
FRAME BELOW ENTRANCE
72
A6326600023
FRAME
77
A6326660732
STRUT
78
A6326605630
SUPPORT
84
A6296660435
RAIL TOP 918LG
89
A6276133311
PLATE
91
A6326112711
PLATE
91
A6326114611
PLATE
92
A6296663111
PLATE141X20
95
A6296663132
STRUT1031LG
107
A6336103123
SUPPORT
107
A6296112315
SUPPORT
113
A6296602022
FRAME CROSS MEMBER 4-5
999
A0029870033
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
