Mercedes A6337550188 - BETAETIGUNGSSTANGE R

S 416 GT 632.125

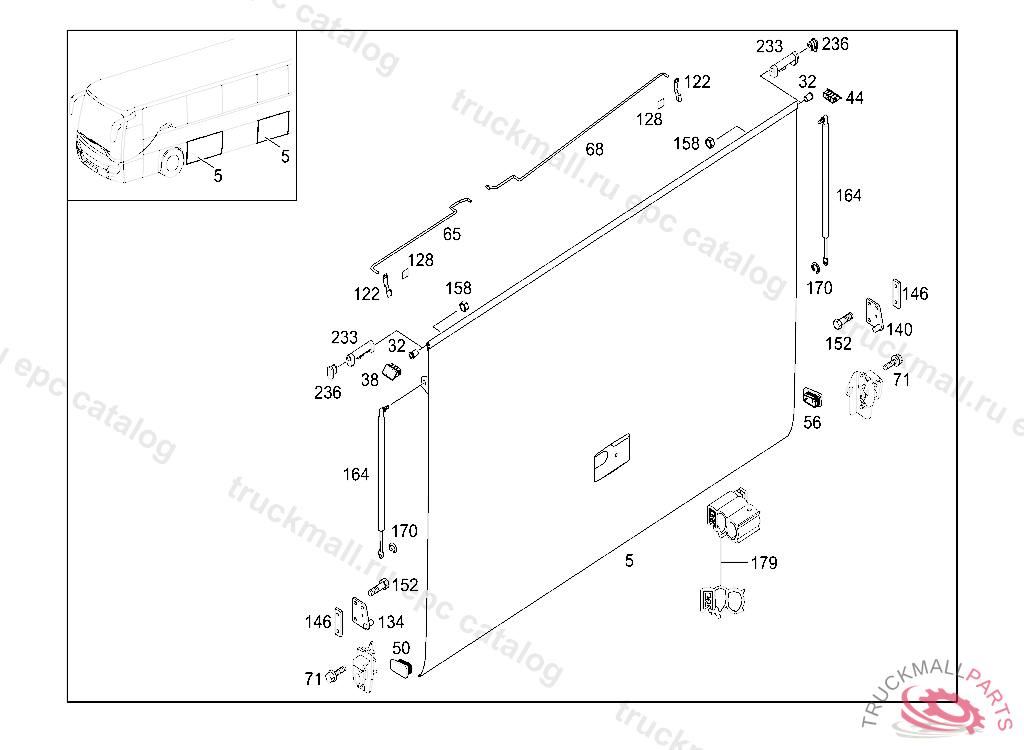

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 4

Поз.
Артикул
Описание
5
A6337500195
HINGED DOOR
5
A6337500804
FLAP SWING FLAP L1810MM
32
A0009926205
BUSHING
38
A0009878945
LOCKING CAP
44
A0009879045
LOCKING CAP
50
A0009877645
LOCKING CAP
56
A0009877745
LOCKING CAP
65
A6337550488
ROD LEFT L747MM
65
A6297540019
STRUTL646 MM
65
A6297546119
STRUTL372 MM
65
A6297540219
ROD. STRUTL437 MM
65
A6327541619
ROD LEFT L431MM
65
A6337550088
ROD LEFT L655MM
68
A6327550588
RODL883 MM
68
A6297540119
STRUTL707 MM
68
A6297546219
STRUTL423 MM
68
A6337550188
ROD RIGHT L707,5MM
68
A6327541719
ROD RIGHT L787MM
68
A6297540319
ROD. STRUTL498 MM
71
N910105006002
HEXAGON HEAD BOLT
122
A0007580042
LOCK
128
A0009940145
LOCK
134
A0007580003
STRIKER
140
A0007580103
STRIKER
146
A6297550111
PLATE
152
N910105008041
SCREW , Replaced By: N910143008000
158
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
158
N913012008001
NUT HINGE LEVER TO MOUNTING
164
A6297500936
SPRING PNEUMATIC SPRING 520 N
164
A6297500036
SPRING PNEUMATIC SPRING 330N
164
A0029807064
SPRING PNEUMATIC SPRING 250N
170
N000471008000
LOCK RING
179
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
233
A0009927003
BUSHING
236
A0009983823
PROTECTIVE CAP
