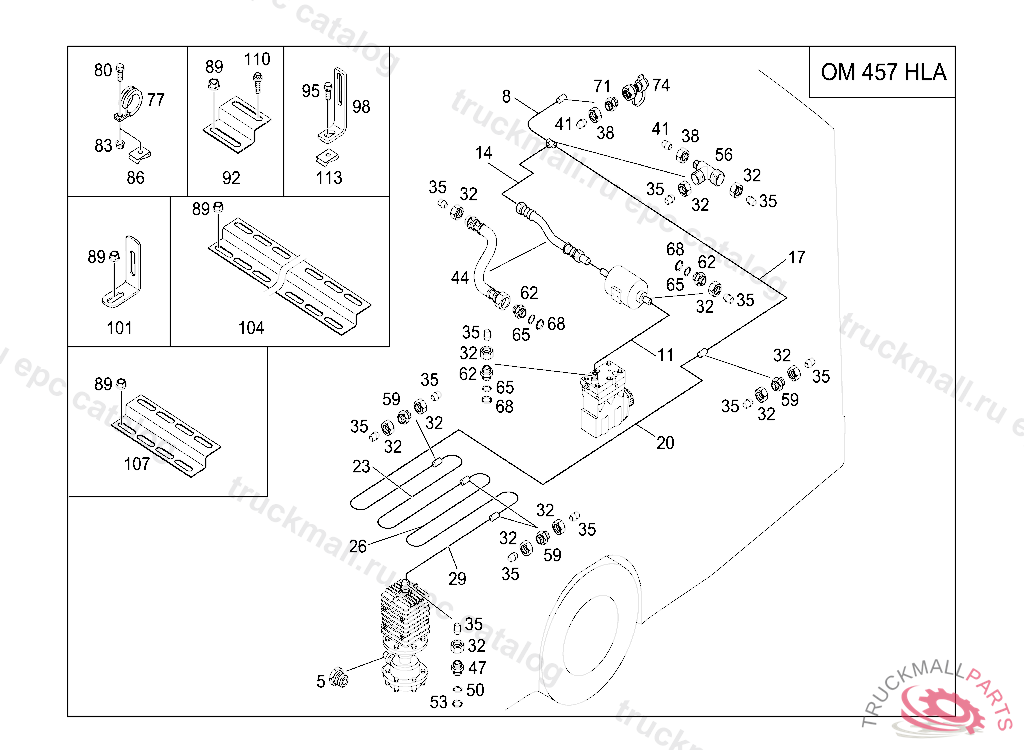

Поз.
Артикул
Описание
5
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
5
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
8
LINE10X0.75X520
11
LINE340 LG.
14
LINE930 LG.
17
LINE1900 LG.
20
LINE2090MM
23
LINE2070MM
26
LINE2500MM
29
LINE1400MM
29
LINE1270 LG.
32
NUT COMPRESSED AIR LINES
35
CUTTING RINGBL 18
38
UNION NUT
41
GLAND
44
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
44
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
47
SCREW-IN FITTING CHECK VALVE,V 207570
50
THRUST RING CHECK VALVE TO AIR RESERVOIR
53
SEAL RING LINE CONNECTION
56
FITTINGL18-18-10
59
FITTING BETWEEN THE LINES
59
CONNECTION FITTING , Replaced By: N003902018002
62
SCREW-IN FITTING , Replaced By: A0029970271
62
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
65
SEAL RING LINE CONNECTION
68
THRUST RING SUCTION LINE TO OIL PUMP
71
FITTINGM 16X1.5
74
TEST CONNECTIONM16X1.5
77
MOUNTING CLAMP SILICONERSGU S 18/15
77
CLAMP10/15
77
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
77
CLAMP LINE MOUNTING 15-18 MM,V 207570
77
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
77
CLAMPRSGU S 18/15
80
SCREW BRACKET AND CLAMP M6X20
83
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
83
NUT BRACKET TO FIRE WALL
86
LOCK NUT. SPRING NUT MOUNTING PARTS
89
NUT HORN TO BRACKET M8
89
NUT ENGINE MOUNTING M8
92
"Z" SECTION60MM, Replaced By: A6279850349
95
SCREW , Replaced By: N910143008000
95
SCREW SPEED SENSOR TO REAR AXLE
98
BRACKET
101
BRACKET
104
Z SECTION500LG.
107
"Z" SECTION225LG
110
HEXALOBULAR BOLT. SCREW SUPPORT WITH HANDBRAKE VALVE ON SEAT FRAME M 8X16
113
NUTM8
