Mercedes A0009904892 - Крепёж

S 416 GT 632.125

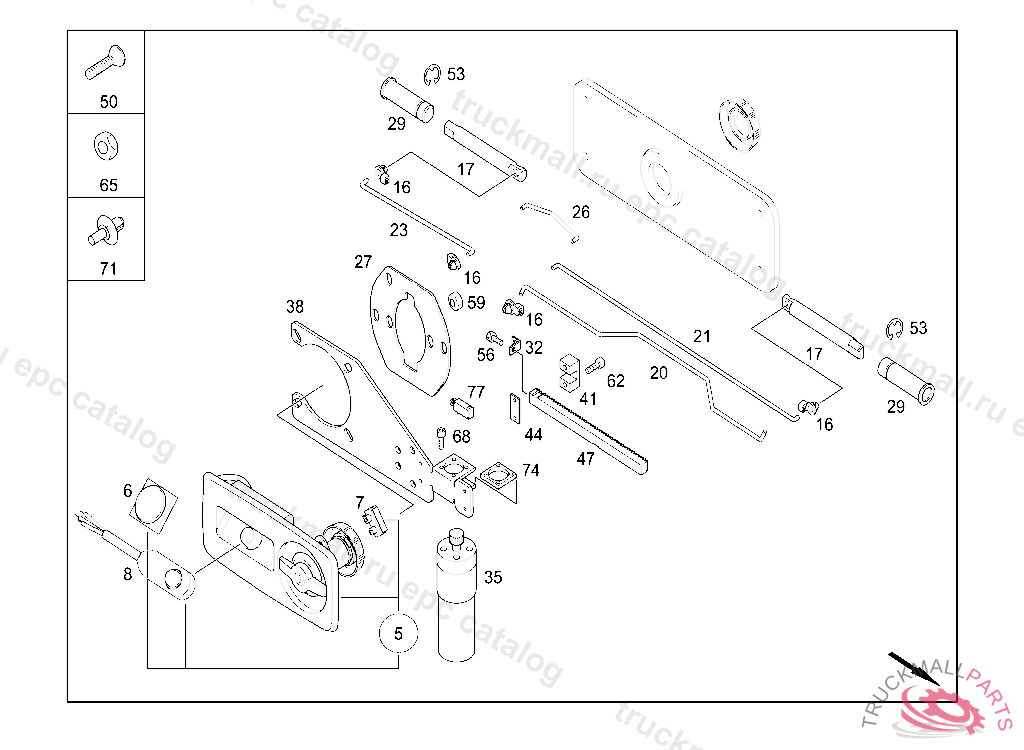

72 DOORS - 180 CLOSING SYSTEM IL. 3

Поз.
Артикул
Описание
5
A6327200166
LOCK , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.01.2012
5
A6297600160
HANDLE
6
A0007660068
ORNAMENTAL COVER MICRO-SWITCH
7
A0008212592
MICRO-SWITCH
8
A0008212492
MICRO-SWITCHTYP83123
16
A0009916771
RETAINING CLIP
16
A0059887678
CLIP HAND BRAKE CABLE,625236
17
A6327230369
LOCK STRIKER
21
A6327330469
PULL ROD RIGHT 378MM
23
A6327330169
PULL ROD
23
A6327230569
PULL ROD LEFT 206MM
26
A6327231469
PULL ROD TOP
27
A6327660019
PLATE
29
A6327330064
LATCH GUIDE
53
N000471016000
RETAINING RING. LOCK RING BRACKET TO BRACKET
53
N000471005000
LOCK RING
59
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
59
N910112006001
NUT , Replaced By: N913023006001
65
N304032003001
NUT BRACKET MOUNTING
71
A0009904892
RIVET
71
A0009914940
EXPANSION RIVET BRACKET MOUNTING
77
A0038212351
SWITCHTO A 000 760 90 03
