Mercedes A6296930617 - Панель капсюляции под радиатором

S 416 GT 632.125

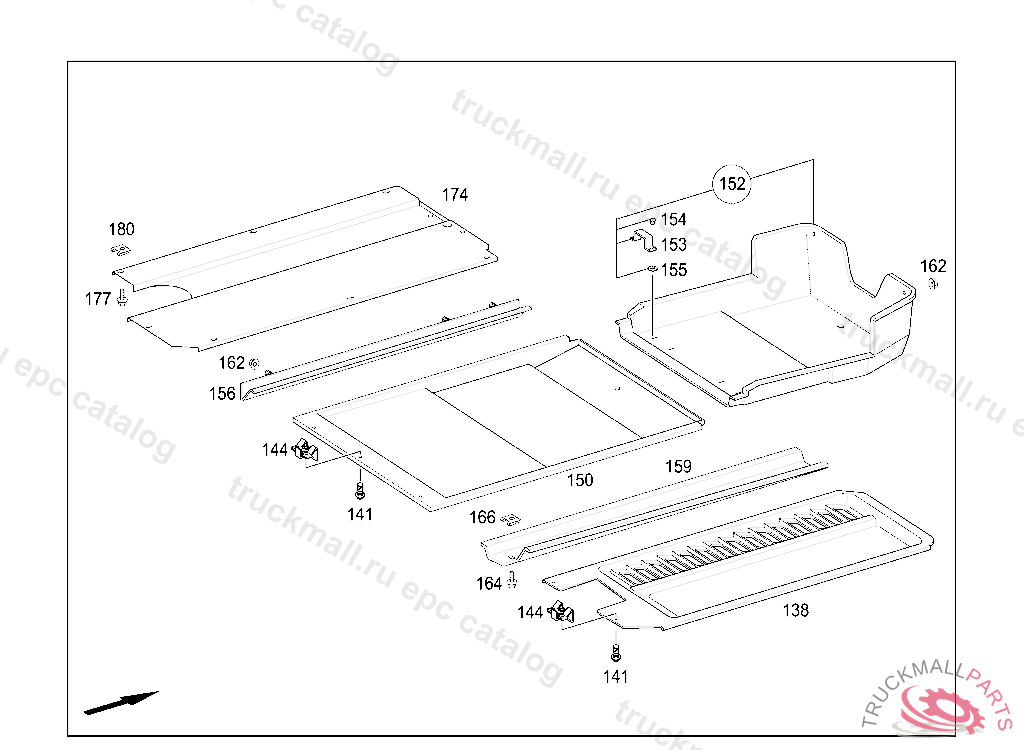

68 PANELLING AND LINING - 440 INSULATION IL. 14

Поз.
Артикул
Описание
138
A6296930617
COVERING RADIATOR COVERING
141
A0009845836
PIVOT9X15MM
144
A0006940058
CLAMP
150
A6296930517
COVERING ENGINE
152
A6296900007
COVERING FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
153
A6296930014
BRACKET FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
154
A0039909397
BLIND RIVET FRONT 4,8X12,70MM
155
A0069900140
WASHER FRONT
156
A6296900220
RAIL LEFT
159
A6296122170
RAIL RIGHT
162
N913023008003
NUT HORN TO BRACKET M8
164
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
166
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
174
A6336930017
COVERING
177
N910105008041
SCREW , Replaced By: N910143008000
180
A0029941945
LOCK
