Mercedes
BUS
S 416 GT
632.125

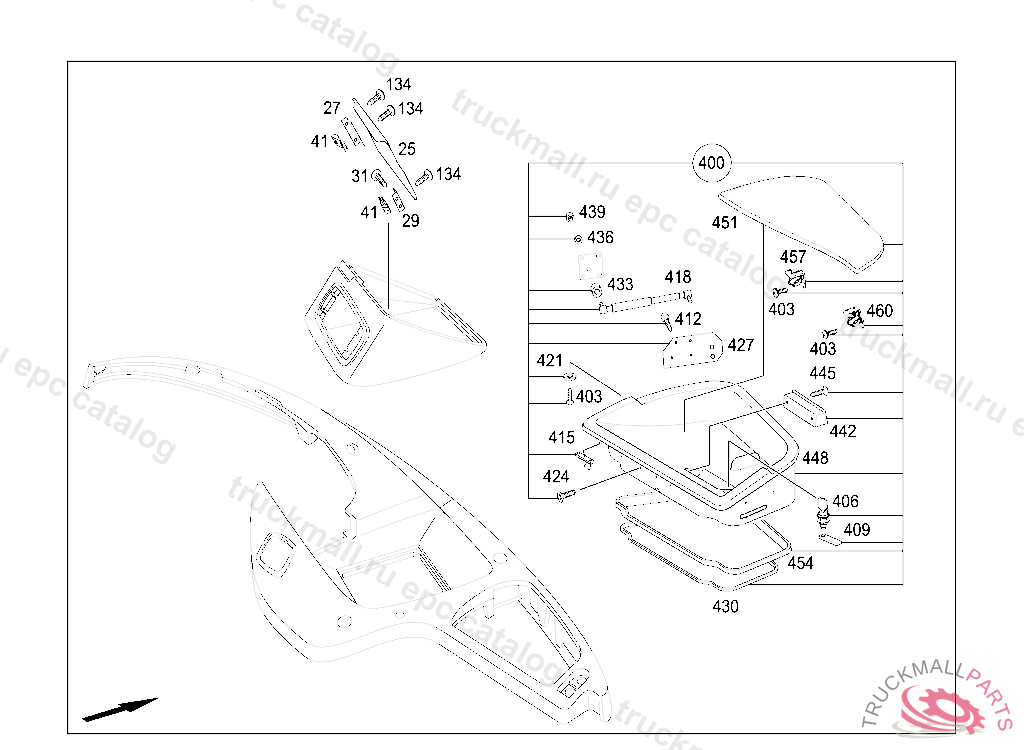

68 PANELLING AND LINING
330 INSTRUMENT PANEL IL. 2

Mercedes A6326890112 - BEFESTIGUNGSWINKEL R

S 416 GT 632.125

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 2

Поз.
Артикул
Описание
25
A6326890008
COVERING
27
A6326890012
ANGLE LEFT
29
A6326890112
ANGLE RIGHT
31
N000000000462
TAPPING SCREW BRACKET MOUNTING 4.8X19
41
A0039948145
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
134
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
400
A6326801278
COVER DARK BURL WOOD
400
A6326801378
COVER CARBON DECOR
400
A6326801478
COVER BIRD'S EYE MAPLE
400
A6326800017
COVERING
403
N000000000450
TAPPING SCREW3.5X22
406
A6296890001
LOCK HOUSING
406
A0006804384
LOCK
409
A0009883843
LATCH TONEUE
409
A6326890002
LATCH PLATE
412
N000000000448
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
412
N000000000490
TAPPING SCREW. SCREW HANDLE TO BACKREST
415
A0006830912
CLOSURE
415
A6296830012
FASTENER
418
A0039802664
GAS PRESSURE STRUT
418
A6299800164
GAS PRESSURE SPRING LIFTOMAT
421
N000125005312
WASHER REFLECTOR TO BRACKET
421
N000125005328
WASHER COVER TO ALTERNATOR
424
N000000000477
TAPPING SCREW3,5X16MM
427
A0006880312
CORNER BRACKET
427
A6326880112
CORNER BRACKET
430
A0006820398
GASKET
430
A0008450198
SEAL COVER BIS 01/2002
433
A0019921103
BUSHING
433
A0009922103
PLAIN BEARING BUSH
436
A0099901182
THRUST WASHER
436
A0029904782
THRUST WASHER
439
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
442
A0006840079
HANDLE RECESS
442
A6296800158
SHELL-TYPE HANDLE
445
N000000000480
SHEET METAL SCREW. SCREW
448
A6326850039
COVER COVER OF LENGTHWISE SEAT BENCH BORE
451
A6326850139
COVER UPPER PART
454
A6326850239
COVER
457
A0009930969
CUP HINGE LEFT
460
A0009931069
CUP HINGE RIGHT
