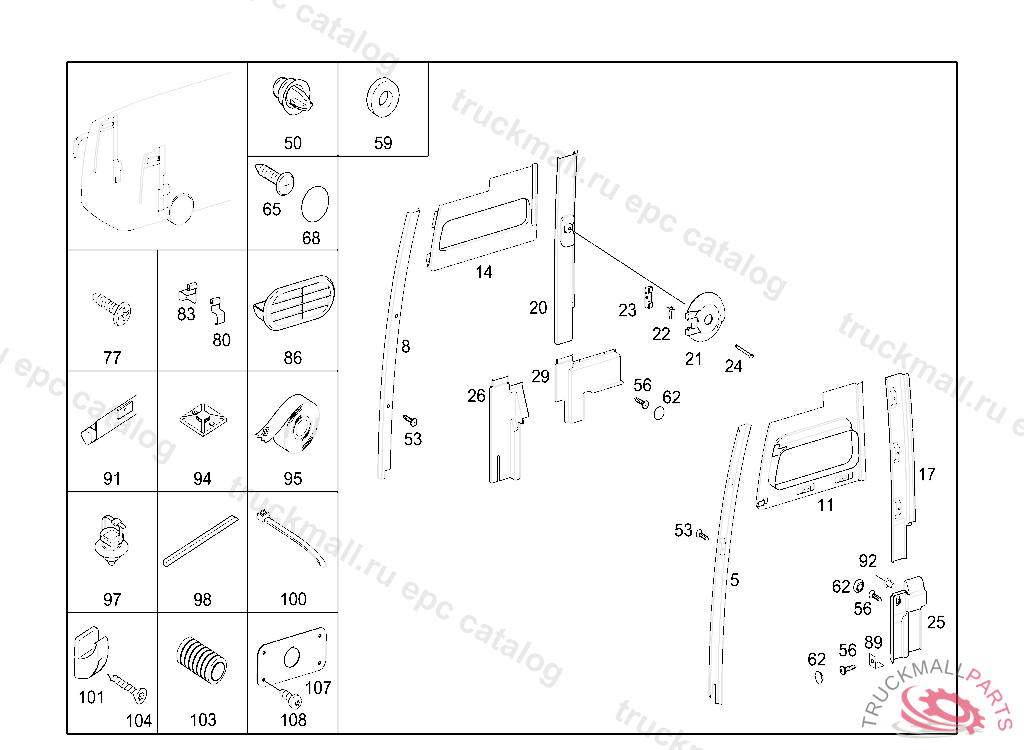

Поз.
Артикул
Описание
5
PANELLING A-PILLAR,LEFT
8
PANELLING A-PILLAR,RIGHT
11
PANELLING ABOVE DRIVER'S SEAT
14
PANELLING ABOVE FRONT ENTRANCE
17
PANELLING B-PILLAR,TOP LEFT
20
PANELLING B-PILLAR,TOP RIGHT
21
COVER
22
MOUNTING
23
SPRING
24
COTTER PIN ROD TO INTERMEDIATE LEVER
25
B-PILLAR TRIM
25
PANELLING B-PILLAR, BOTTOM LEFT WITH BASE EXTENSION, TO BE ADAPTED DURING ASSEMBLY
25
PANELLING B-PILLAR, BOTTOM LEFT WITHOUT BASE EXTENSION
25
B-PILLAR TRIM
29
PANELLING
29
PANELLING
50
TRIM CLIP PANELING AT TOP,RIGHT
53
TAPPING SCREW3.5X19
56
SHEET METAL SCREW. SCREWST25X 6 T20
62
LOCKING CAP
65
HEXAL. SOCKET CSK. BOLTM6X10 TX30
68
LOCKING CAP
77
TAPPING SCREW2,9X9,5
80
CAP
83
CAP
86
COVERING
89
ANGLE
91
COVER STATE SIZE WHEN ORDERING
91
COVER STATE SIZE WHEN ORDERING
92
BLIND RIVET. RIVET BRACKET TO SUPPORT , 4X10
94
PLATE CABLE HARNESS MOUNTING
95
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
97
LOOM TIE
97
CABLE STRAP LINE MOUNTING 260X3.3MM
98
SEALING STRIP
100
LOOM TIE LINE MOUNTING 150 X 3,6 MM
101
CLOTHES-HOOK , .......INO.7E86I.......I.......I II
103
INSULATING HOSE AUXILIARY HEATER 7.5 MM, ORDER BY THE METER
104
TAPPING SCREW3.5X22
999
TAPPING SCREW BRACKET MOUNTING
