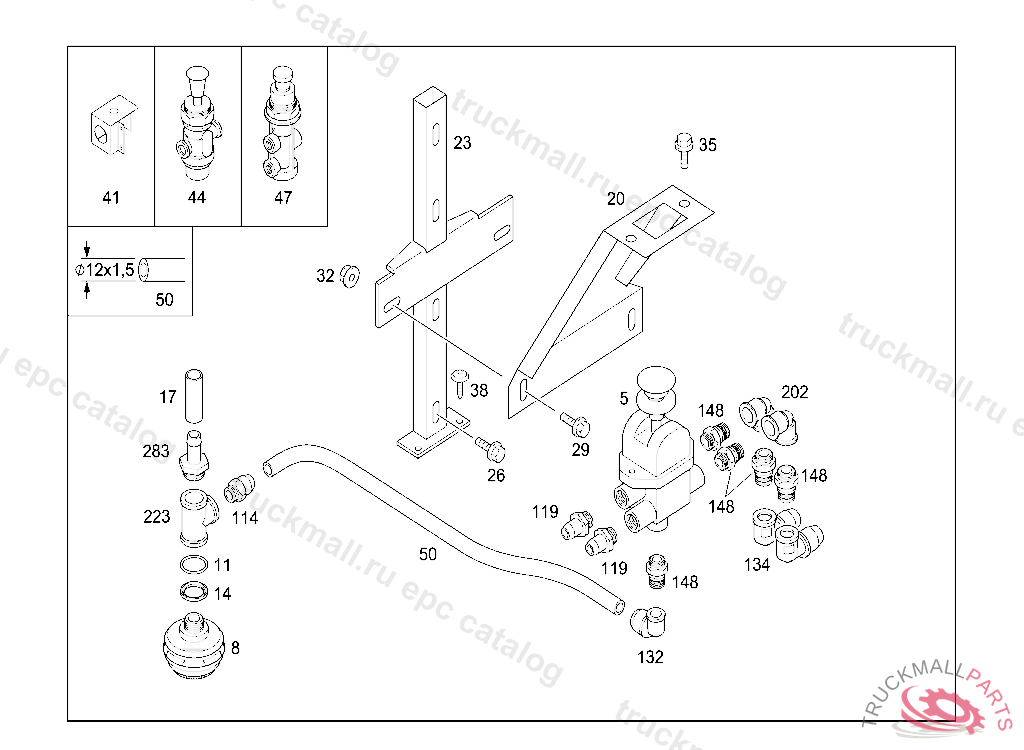

Поз.
Артикул
Описание
5
VALVE PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL KNORR, 14.08
8
MUFFLER TRAILER CONTROL VALVE
11
SEAL RING20.3X2.4
14
THRUST RING CHECK VALVE TO AIR RESERVOIR
14
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
17
HOSE TRANSPARENT D20X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
BRACKET (PARKING BRAKE VALVE)
23
BRACKET
23
BRACKET
26
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
26
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
29
SCREW BRACKET TO CAB REAR PANEL M 8X20
29
SCREW BRACKET TO SIDE MEMBER M8X20
32
NUT HORN TO BRACKET M8
32
NUT ENGINE MOUNTING M8
35
SCREW , Replaced By: N910143008000
35
SCREW SPEED SENSOR TO REAR AXLE
38
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
41
BRACKET VERSION SWEDEN
44
VALVE LOCKING VALVE S
47
VALVE PRESSURE VALVE S
50
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
114
FITTING12X1.5/M22X1.5 RAUFOSS
119
FITTING8X1/M16X1.5 RAUFOSS
132
ELBOW FITTINGP5/12X1.5/90GR
134
ELBOW FITTINGP5/8X1MM/90GR
148
FITTINGP5/M16X1.5
202
PIPE BENDP5/M16X1.5 RAUFOSS
223
T-FITTINGM22X1.5/M22X1.5/M22X1.5 RAUFOSS
283
CONNECTORM22X1.5/16X2 RAUFOSS
