Mercedes A0006830006 - MONTAGERAHMEN

S 415 GT-HD 632.131

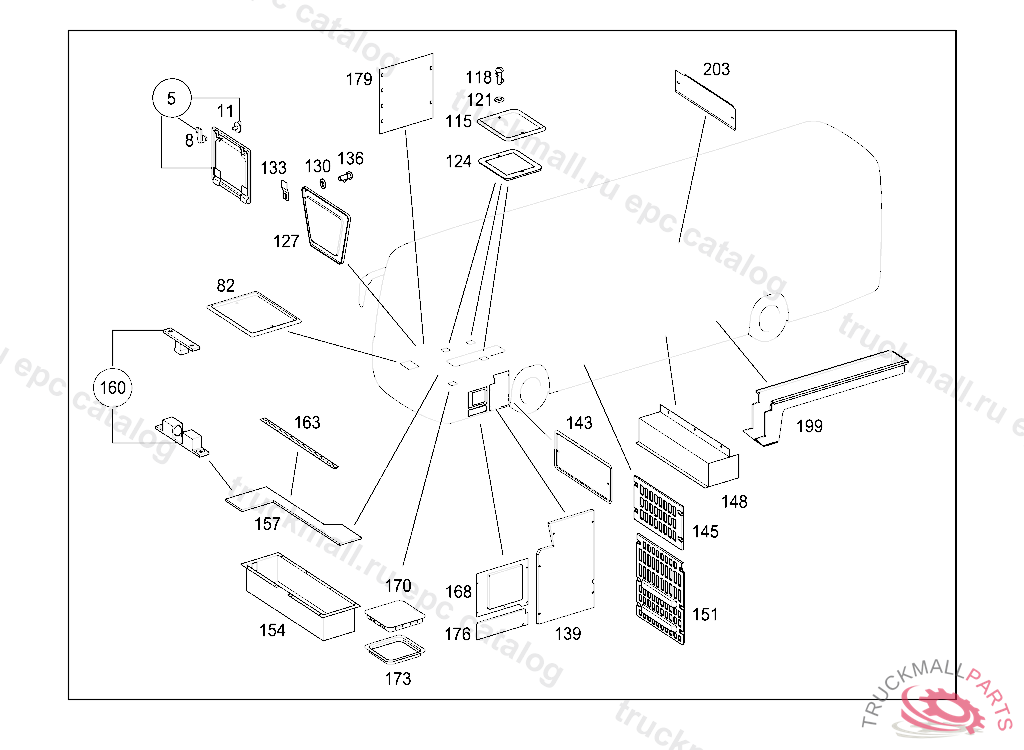

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6296801607
CLOSING COVER
8
A0009980695
ROTARY CATCH
11
A0009980595
ROTARY CATCH
115
A0006840018
COVER ABS
118
A0006830212
FASTENER SUPERFIX
121
N000125008445
WASHER PUMP TO CONSOLE
124
A0006800907
COVERING
127
A6296860010
PANELLING PANE WIPER
130
A0039908740
WASHER6 MM
130
A0009911195
FASTENING CLIP
133
A0019886142
FASTENER
136
A0009915807
PIVOT PIN
139
A6326820016
COVERING ELECTRICAL COMPARTMENT
145
A6296860707
COVERING AT CROSS MEMBER 4
148
A6296860507
COVERING CROSS MEMBER
151
A6296860407
COVERING CROSS MEMBER 4
154
A6326800358
RECESS
154
A6326800058
SHEET-METAL PAN
157
A0009837380
PLYWOOD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
157
A0009837880
PLYWOOD2500X1530X15MM, TO BE ADAPTED DURING ASSEMBLY
160
A0009883063
SNAP LOCK
163
A0006840052
HINGE PLATE
163
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
168
A6326820816
COVER ELECTRICAL COMPARTMENT
170
A0006800323
SERVICING COVER
173
A0006830006
FRAME
176
A6326820916
COVER ELECTRICAL COMPARTMENT
179
A6326820416
COVER ELECTRICAL COMPARTMENT
199
A6296840477
PANELLING WATER PIPE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
203
A6326870107
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
